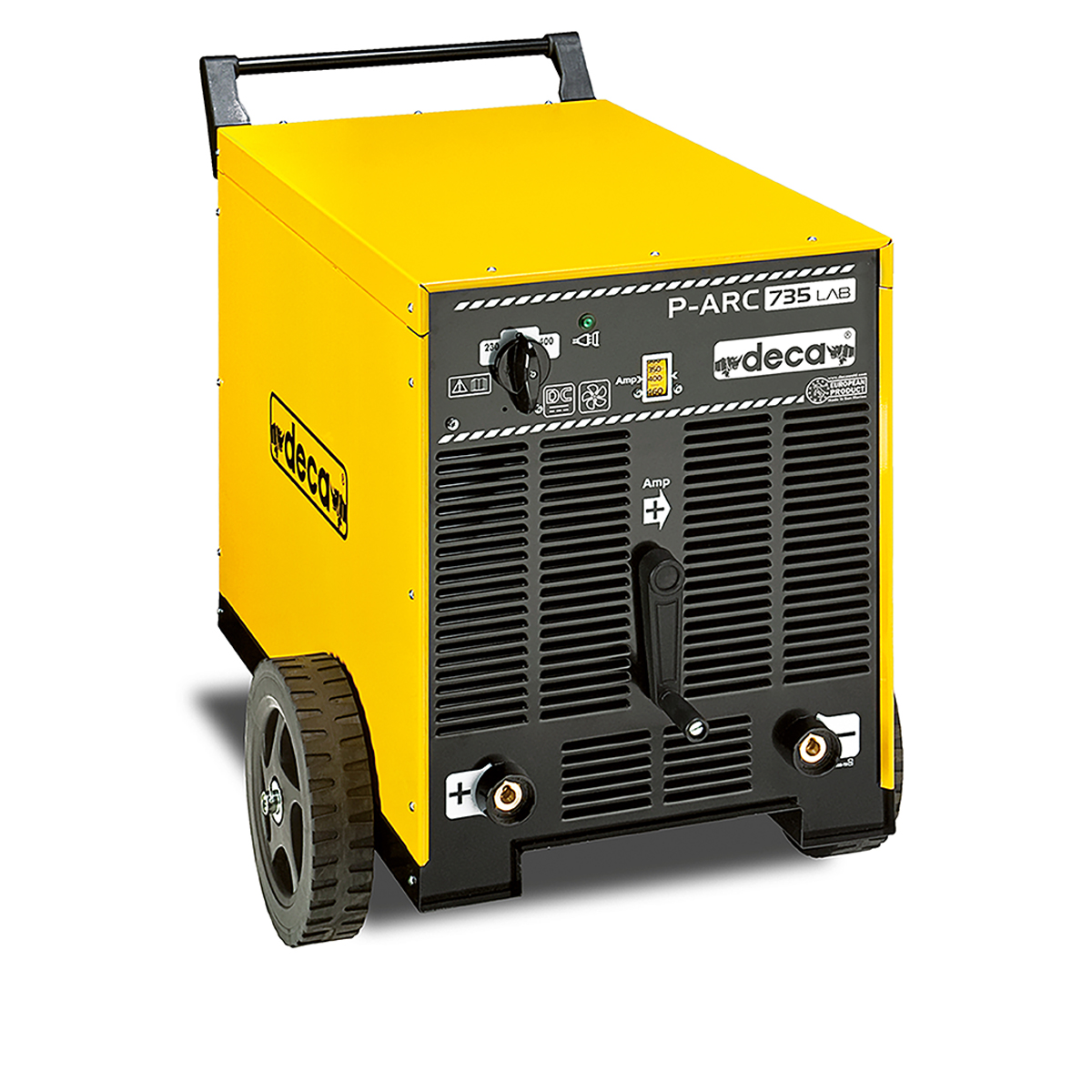

P-ARC 735 LAB

Stick welder MMA DC: 55÷350Amp (230/400V3Ph).
For light carpentry.

Code: 227500

SKU227500 CategoriesWELDING AND CUTTING, MMA DC, TRADITIONAL

The electromechanical generators for welding of the P-ARC line are the classic offer of robust and durable systems.
They are the ideal choice for craftsmen, blacksmiths, maintenance workers and heavy carpentry. They meet professional and specialist welding needs and are guaranteed by the LAB mark of excellence.

P-ARC 735 LAB delivers 350 Amps in direct current to weld electrodes from 2.0 to 7.0mm in diameter. It welds with rutile and basic coated electrodes on various metals: steel, stainless steel, cast iron, etc.
The power supply voltage is three-phase at 230/400 Volt.

P-ARC 735 LAB is easy to use:

Continuous regulation of the welding current.
Forced ventilation.
Connections 25mmq to connect the welding Cables.

Included accessories: Generator only.

Technical data

DATA SHEET	TITOLO
Process	MMA DC
Technology	TRADITIONAL
Standard
Mains voltage 50/60 Hz	3 X 230 / 400V
Absorbed power 60% – MAX	6,5 – 14 kW
Maximum power absorbed 230V (I1max)
Mains current effective 230V (I1max)
Maximum power absorbed 400V (I1max)
Mains current effective 400V (I1max)
Fuse	50 – 32A
Power factor: Cos phi
Efficiency
Power open circuit
WELDING PERFORMANCE	PARAGRAFO
MMA Current rate	55 – 350A
MMA Duty cycle Max current (40°)	300A @ 35%
MMA Duty cycle 60% (40°)	200A
MMA Duty cycle 100% (40°)
Open circuit voltge:V (230V)
Open circuit voltage	71 – 78V
MMA 230V Welding current range
MMA 230V Duty cycle (40°) MAX
MMA 230V Duty cycle (40°) 60%
MMA 230V Duty cycle (40°) 100%
TIG 230V Open circuit voltage
MMA 400V Welding current range
MMA 400V Duty cycle (40°) MAX
MMA 400V Duty cycle (40°) 60%
MMA 400V Duty cycle (40°) 100%
Open circuit voltage: V (400V)
WELDING WIRES / ELECTRODES	PARAGRAFO
Rutile electrode, (Ø mm)	2,0 – 7,0
Basic electrode, , (Ø mm)	2,5 – 5,0

Features

CHARACTERISTICS	TITOLO
Portable
With wheels
Stepless regulation
Output connections	DX 50 mmq
Fan cooling
Thermostatic protection
Protection class
Weight and Dimention	PARAGRAFO
Weight approx kg	99,50
Dimensions L x W x H mm	880X570X720
LOGISTIC DATA	TITOLO
Barcode	8011399024012
Package dimension: L x W x H mm	800X450X575
Package weight kg:	101,50
Pieces per pallet:	4
