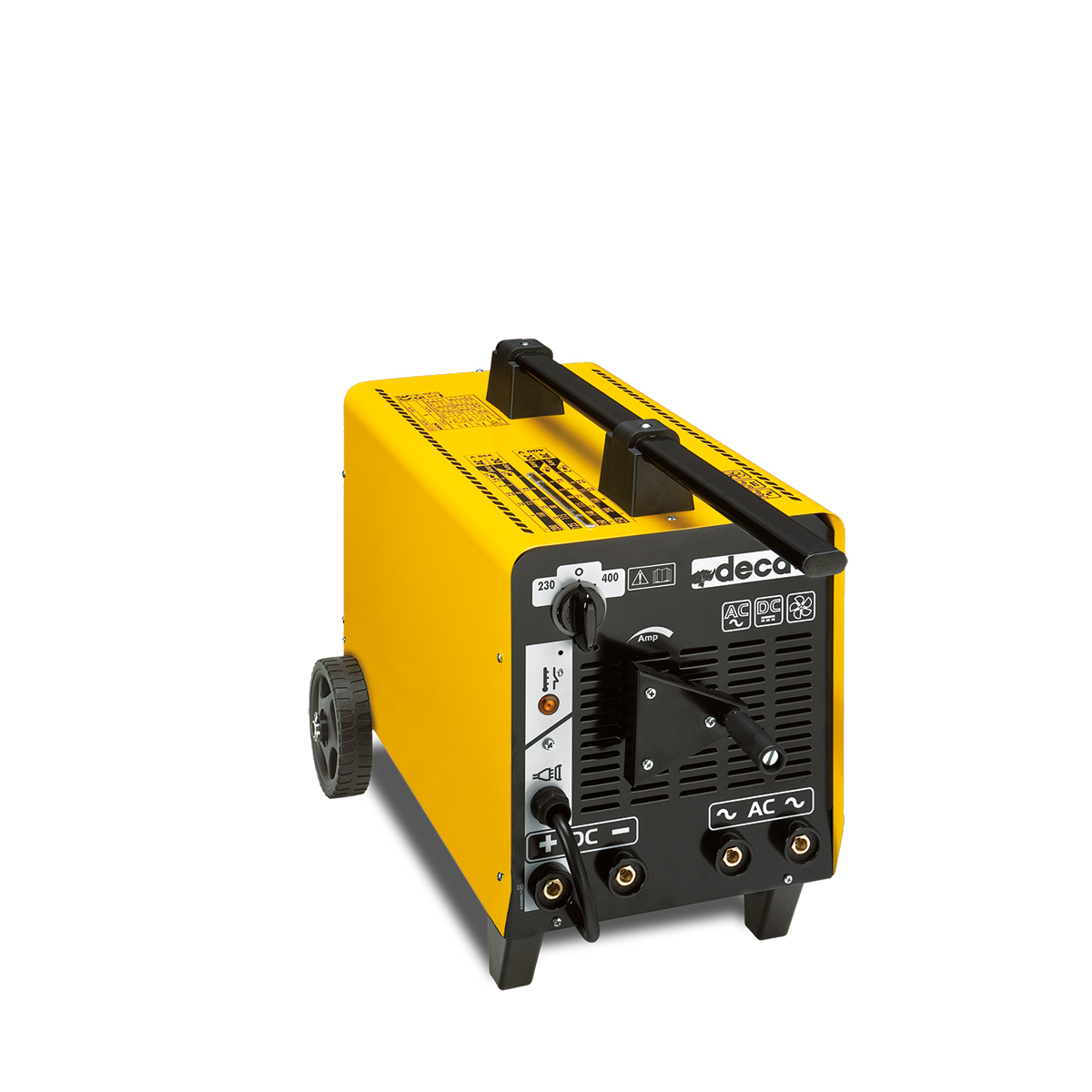

P-ARC 525 LAB

Stick welder MMA AC/DC: 40÷24Amp (230/400V1Ph).
For light carpentry.

Code: 205400

SKU205400 CategoriesWELDING AND CUTTING, MMA AC, TRADITIONAL

The electromechanical generators for welding of the P-ARC line are the classic offer of robust and durable systems.
They are the ideal choice for craftsmen, blacksmiths, maintenance workers and heavy carpentry.
They meet professional and specialist welding needs and are guaranteed by the LAB mark of excellence.

P-ARC 525 LAB has a double welding current output: delivers 240 Amps in direct current and 155 Amps in alternating current, for weld electrodes from 1.6 to 5.0mm in diameter. It welds with rutile and basic coated electrodes on various metals: steel, stainless steel, cast iron, etc.
The power supply voltage is single-phase at 230/400 Volt.

P-ARC 525 LAB is easy to use:

Continuous regulation of the welding current.
Thermostatic protection.
Forced ventilation.
Connections 25mmq to connect the welding Cables.

Included accessories: Generator only.

Technical data

DATA SHEET	TITOLO
Process	MMA AC / DC
Technology	TRADITIONAL
Standard
Mains voltage 50/60 Hz	1 X 230 / 400V
Absorbed power 60% – MAX	2,5 – 7,5 kW
Maximum power absorbed 230V (I1max)
Mains current effective 230V (I1max)
Maximum power absorbed 400V (I1max)
Mains current effective 400V (I1max)
Fuse	25 – 20A
Power factor: Cos phi
Efficiency	< 80%
Power open circuit
WELDING PERFORMANCE	PARAGRAFO
MMA Current rate	(AC) 40 – 240A – (DC) 25 – 155A
MMA Duty cycle Max current (40°)	(AC) 220A @ 8% – (DC) 145A @ 15%
MMA Duty cycle 60% (40°)	(AC) 80A – (DC) 70A
MMA Duty cycle 100% (40°)
Open circuit voltage	(AC) 44 – 54V – (DC) 65 – 77V
MMA 230V Welding current range
MMA 230V Duty cycle (40°) MAX
MMA 230V Duty cycle (40°) 60%
MMA 230V Duty cycle (40°) 100%
Open circuit voltge:V (230V)
MMA 400V Welding current range
MMA 400V Duty cycle (40°) MAX
MMA 400V Duty cycle (40°) 60%
MMA 400V Duty cycle (40°) 100%
Open circuit voltage: V (400V)
MMA (20° 1h), A /V
MMA (20°, 1h) Ø 1,6: pz / A /%
MMA (20°, 1h) Ø 2,0: pz / A /%
MMA (20°, 1h) Ø 2,5: pz / A /%
MMA (20°, 1h) Ø 3,2: pz / A /%
MMA (20°, 1h) Ø 4,0: pz / A /%
MMA (20°, 1h) Ø 5,0: pz / A / %
WELDING WIRES / ELECTRODES	PARAGRAFO

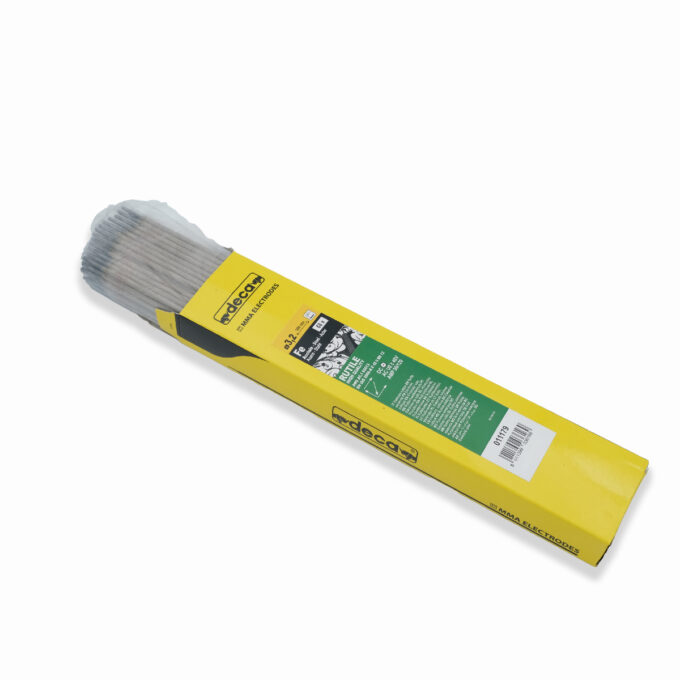

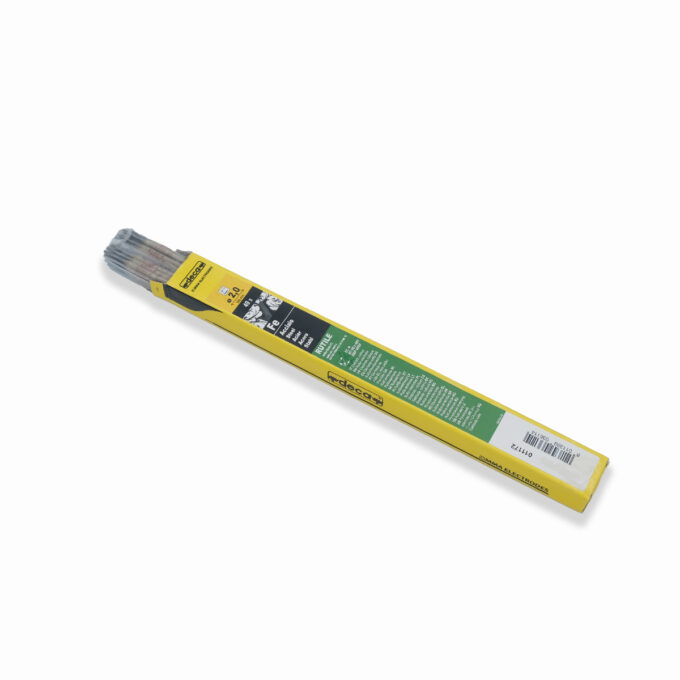

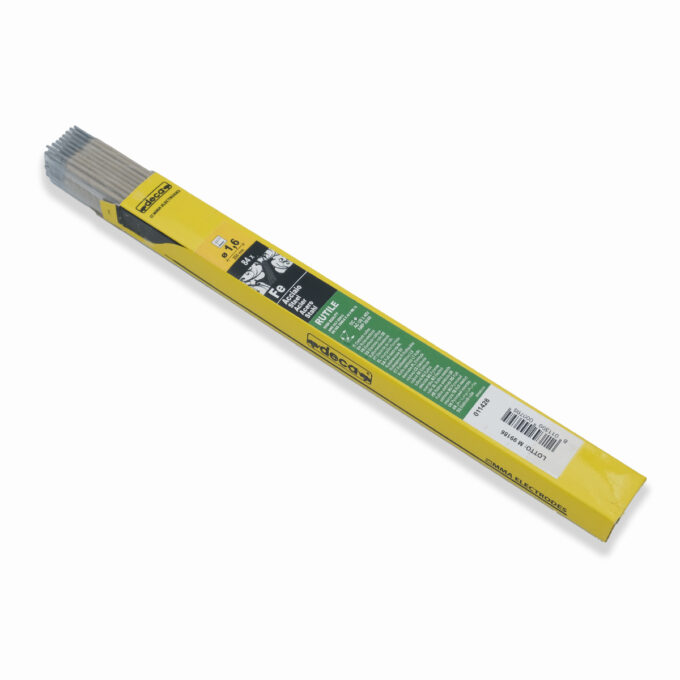

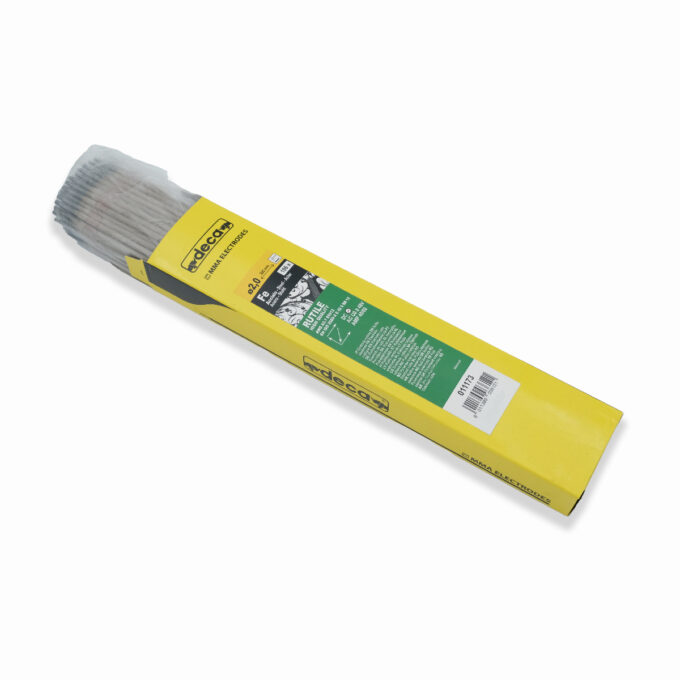

Rutile electrode, (Ø mm)	1,6 – 5,0

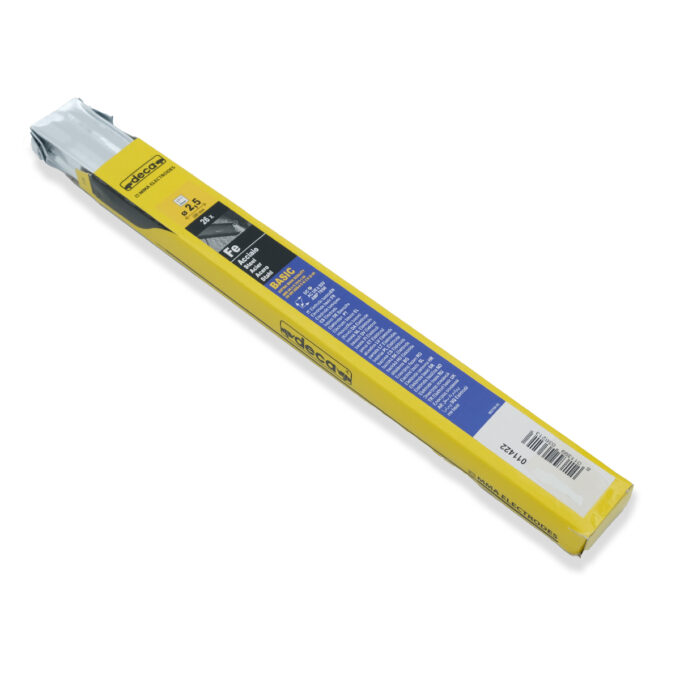

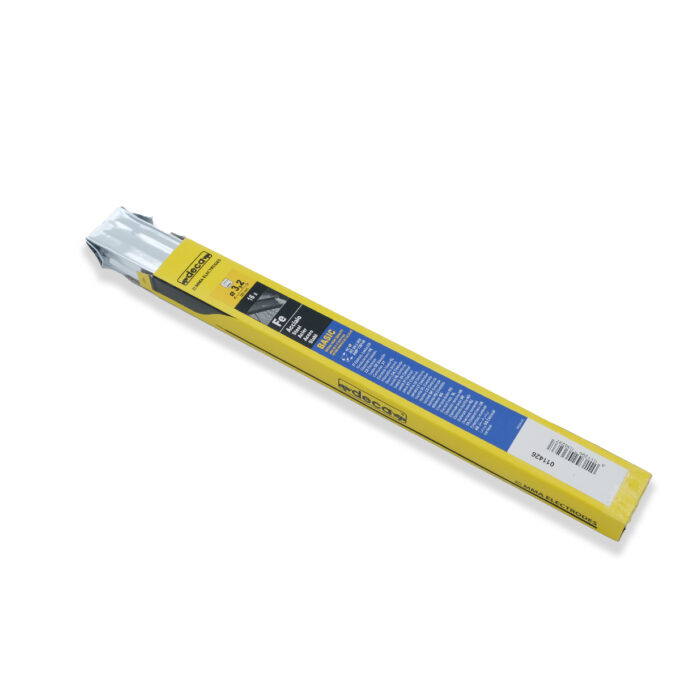

Basic electrode, , (Ø mm)	2,5 – 3,2

Features

CHARACTERISTICS	TITOLO
Portable
With wheels
Output connections	DX 25 mmq
Fan cooling
Stepless regulation
Thermostatic protection
Protection class
Weight and Dimention	PARAGRAFO
Weight approx kg	31,50
Dimensions L x W x H mm	710X350X425
LOGISTIC DATA	TITOLO
Barcode	8011399031171
Package dimension: L x W x H mm	595X275X350
Package weight kg:	32,50
Pieces per pallet:	16
