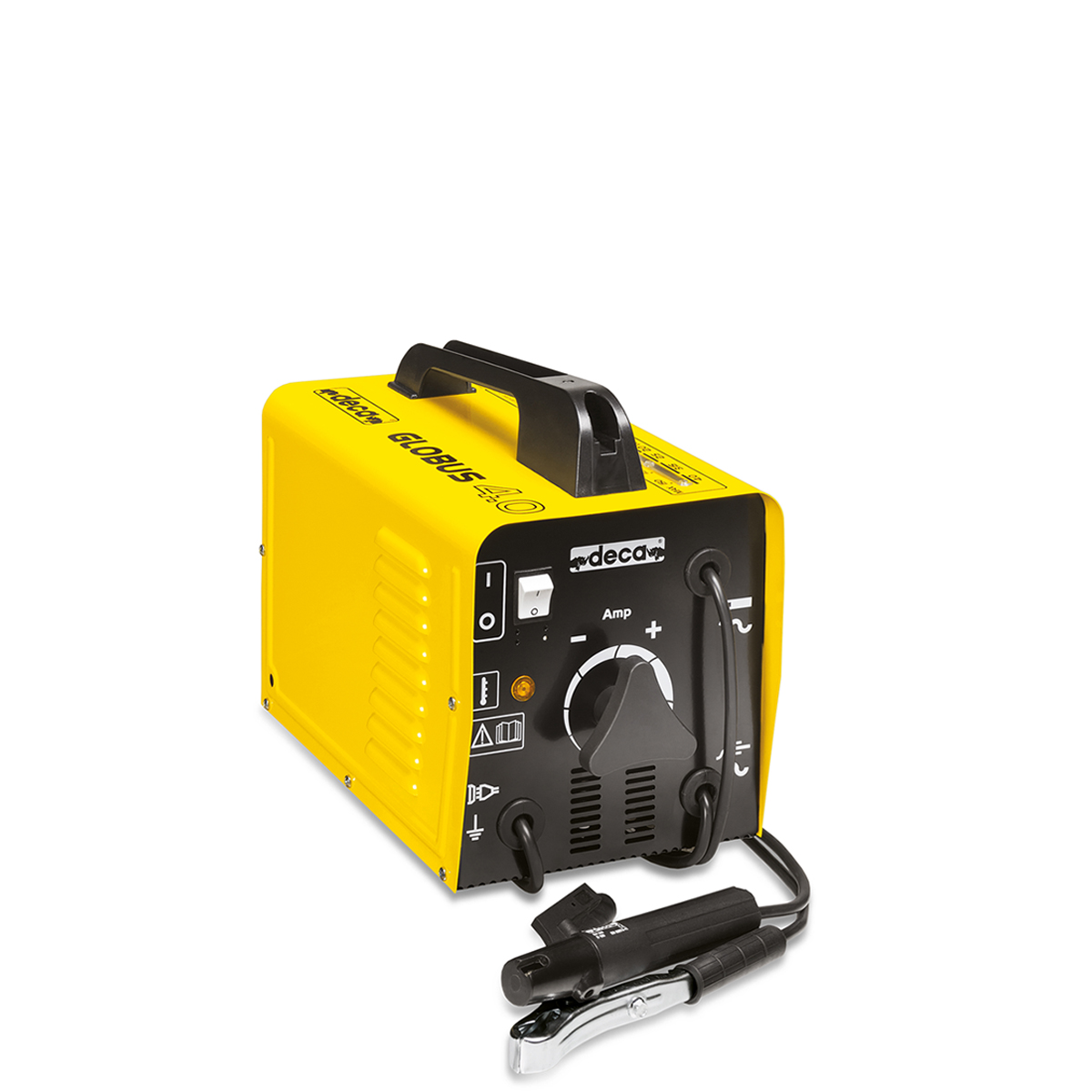

GLOBUS 4.0

The traditional MMA electrode welding generators of the GLOBUS line are the classic offering of robust and durable systems.
They are the ideal choice for small workshop jobs.

GLOBUS 4.0 delivers 160 Amps in alternating current to weld electrodes from 1.6 to 4.0mm in diameter. It welds with rutile electrodes on various metals: steel, stainless steel, cast iron, etc.

GLOBUS 4.0 is easy to use:

Continuous adjustment of the welding current.
Thermostatic protection.
Forced ventilation.

Equipment: welding cables, ground clamp, electrode holder.

Technical data

DATA SHEET	TITOLO
Process	MMA AC
Technology	TRADITIONAL
Standard
Mains voltage 50/60 Hz	1 X 230V
Absorbed power 60% – MAX	2 kW (Min) – 5 kW
Maximum power absorbed 230V (I1max)
Mains current effective 230V (I1max)
Fuse	20A
Power factor: Cos phi
Efficiency	< 80%
Power open circuit
WELDING PERFORMANCE	PARAGRAFO
MMA Current rate	44 – 160A
MMA Duty cycle Max current (40°)
MMA Duty cycle 60% (40°)
MMA Duty cycle 100% (40°)
Open circuit voltage	43 – 49V
MMA 230V Welding current range
MMA 230V Duty cycle (40°) MAX
MMA 230V Duty cycle (40°) 60%
MMA 230V Duty cycle (40°) 100%
MMA (20° 1h), A /V
MMA (20°, 1h) Ø 1,6: pz / A /%
MMA (20°, 1h) Ø 2,0: pz / A /%
MMA (20°, 1h) Ø 2,5: pz / A /%
MMA (20°, 1h) Ø 3,2: pz / A /%
MMA (20°, 1h) Ø 4,0: pz / A /%
Open circuit voltge:V (230V)
WELDING WIRES / ELECTRODES	PARAGRAFO

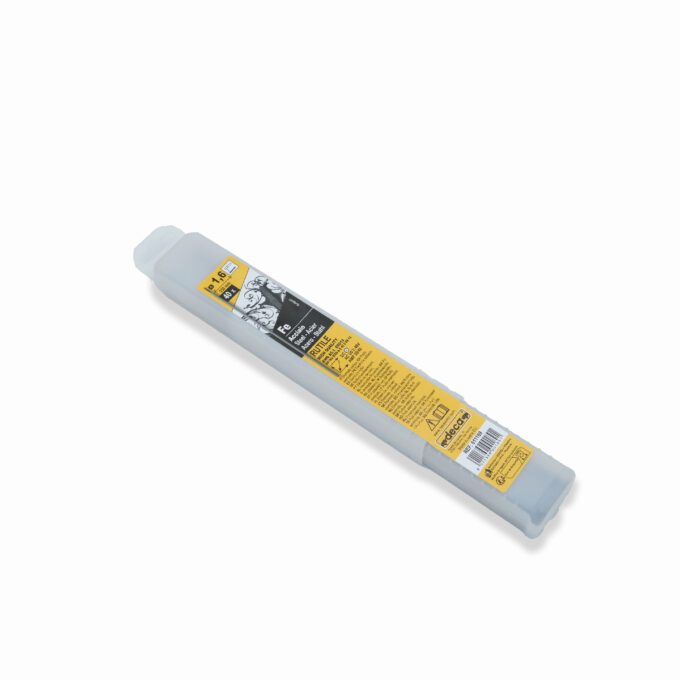

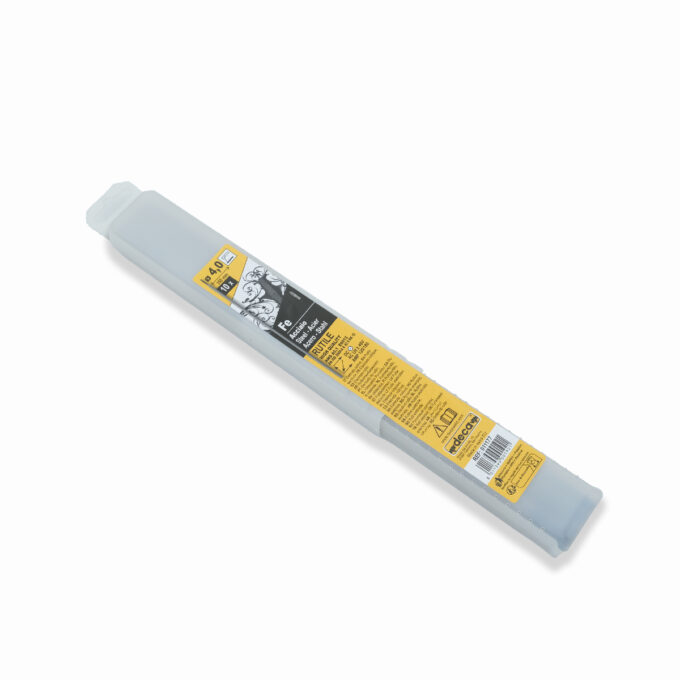

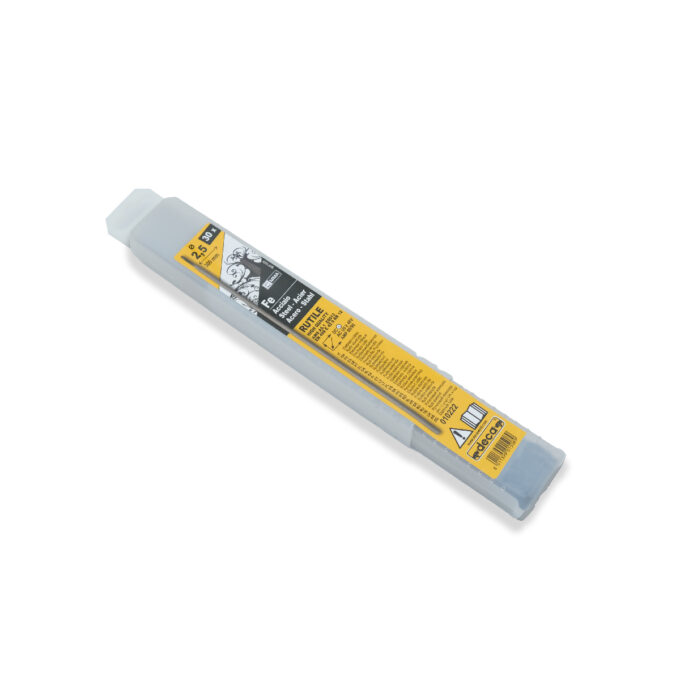

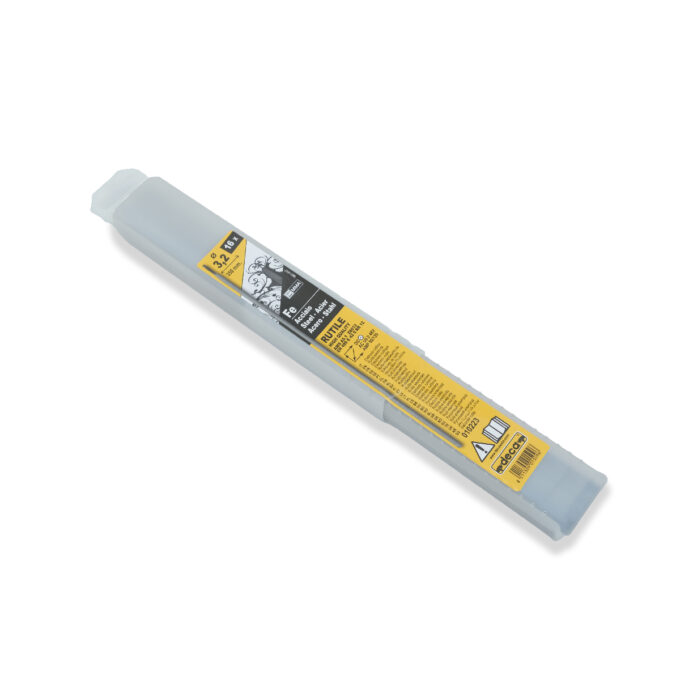

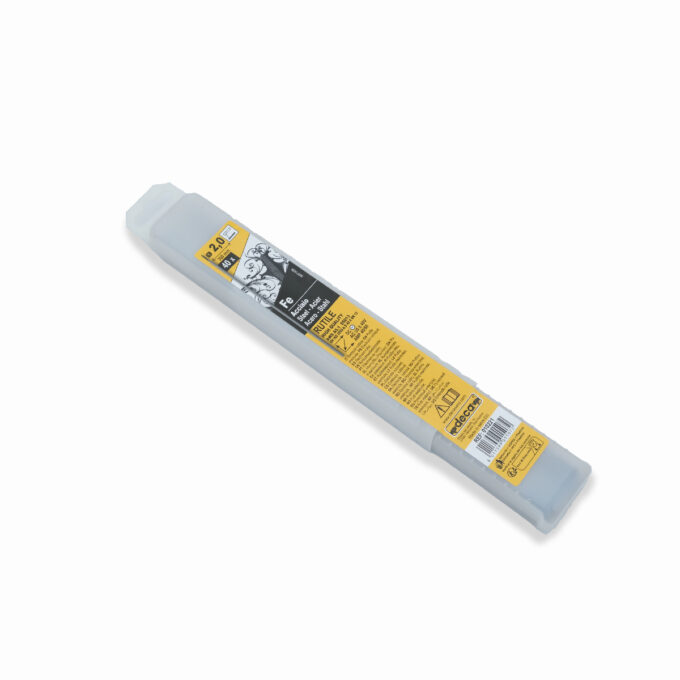

Rutile electrode, (Ø mm)	1,6 – 4,0
Basic electrode, , (Ø mm)

Features

CHARACTERISTICS	TITOLO
Portable
With wheels
Stepless regulation
Output connections
Direct output cables
Fan cooling
Thermostatic protection
Protection class
Weight and Dimention	PARAGRAFO
Dimensions L x W x H mm	385X208X280
Weight approx kg	15,57
LOGISTIC DATA	TITOLO
Barcode	8011399031690
Package dimension: L x W x H mm	395X225X290
Package weight kg:	16,13
Pieces per pallet:	50
