D-mig 760TD LAB

Power unit MIG-MAG: 40÷600Amp (230/400V3Ph).
For heavy carpentry..

Code: 268400

SKU268400 Categories, ,

The DECA proposal for heavy carpentry. Traditional generator to be connected to a separate wire feeder.

The three-phase D-mig 760TD LAB generator delivers 600 Amps of welding current. When connected to the WF4D LAB synergistically controlled wire feeder or the WF4 compact wire feeder, it allows welding on medium and large thicknesses.
The ideal choice for working on steel, stainless steel, aluminum and Flux Cored wires.


Equipment: 50mm2 cable with ground clamp (3m), gas hose (1.5m).

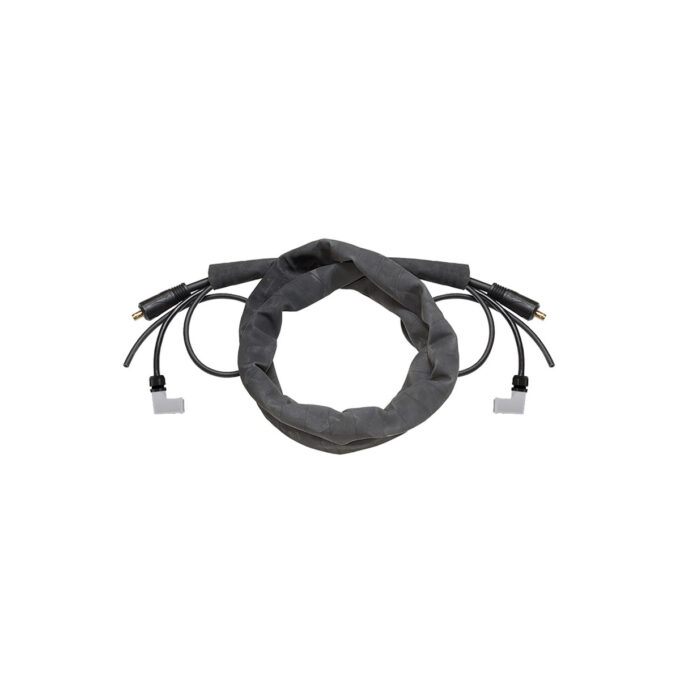

The generator can be completed with separate wire feeder, a cooling unit for the torch and various lengths of connection cables.

Technical data

DATA SHEET TITOLO
Process MIG/MAG
Technology TRADITIONAL
Standard
Mains voltage 50/60 Hz 3 X 230 / 400V
Absorbed power 60% – MAX 13 – 20 kW
Maximum power absorbed 230V (I1max)
Mains current effective 230V (I1max)
Maximum power absorbed 400V (I1max)
Mains current effective 400V (I1max)
Fuse 63 – 40A
Power factor: Cos phi
Efficiency
Power open circuit
WELDING PERFORMANCE PARAGRAFO
MIG Current rate 40 – 600A
MIG Duty cycle Max current (40°) 470A @ 35%
MIG Duty cycle 60% (40°) 360A
MIG Duty cycle 100% (40°)
Open circuit voltage 18 – 51V
MIG 230V Welding current range
MIG 230V Duty cycle MAX (40°)
MIG 230V Duty cycle 60% (40°)
MIG 230V Duty cycle 100% (40°)
Open circuit voltge:V (230V)
MIG 400V Welding current range
MIG 400V Duty cycle MAX (40°)
MIG 400V Duty cycle 60% (40°)
MIG 400V Duty cycle 100% (40°)
Open circuit voltage: V (400V)
Number of welding settings 30
WELDING WIRES / ELECTRODES PARAGRAFO
Wire steel, (Ø mm) 0,8-1,0-1,2-1,6
Wire inox, (Ø mm) 0,8-1,0-1,2-1,6
Wire Al.Mg 5, (Ø mm) 1,0-1,2-1,6
Wire Al.Si 5, (Ø mm) 1,0-1,2-1,6
Wire Cu.Si 3, (Ø mm)
Wire Cu.Al 8, (Ø mm)
Wire flux cored (steel), (Ø mm) 1,2-1,6

Features

CHARACTERISTICS TITOLO
With wheels
Wheeled with separate wire feeder
Separate wire feeder
MIG power unit
Wire spools
Wire feeder
Output connections DX 70 mmq
Gas bottle trolley h 160 cm MAX
Fan cooling
Thermostatic protection
Display
Water cooling unit available
Protection class
Weight and Dimention PARAGRAFO
Weight approx kg 125,00
Dimensions L x W x H mm 920X540X940
LOGISTIC DATA TITOLO
Barcode 8011399030396
Package dimension: L x W x H mm 800X440X710
Package weight kg: 129,00
Pieces per pallet: 4

Functions

FUNCTIONS
Synergic welding
2T / 4T
Spot (t. On)
Stitch (t. On + t.Off)
MIG Burn back
Welding Amp / Volt
Simple weld
MIG Soft start

Attachments
