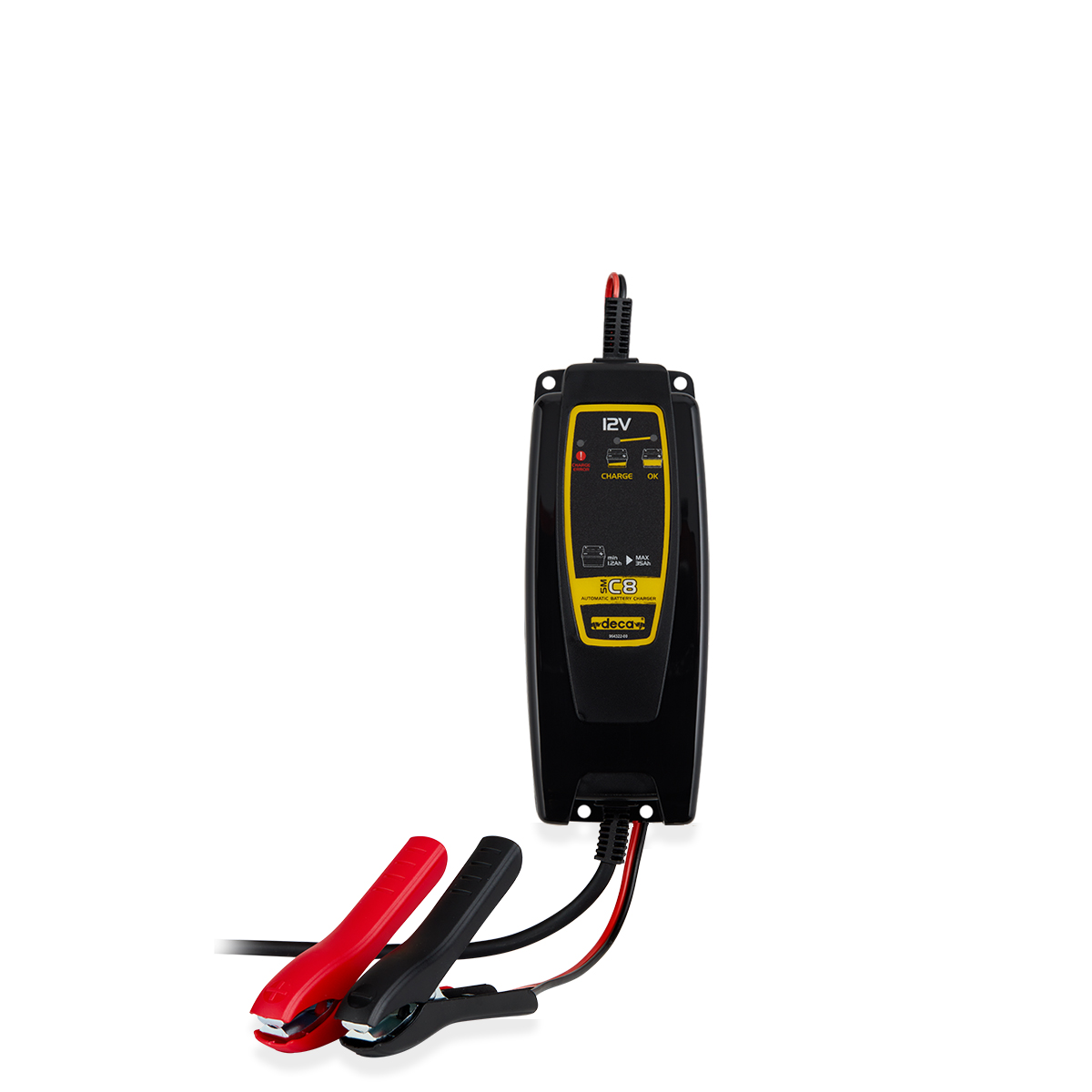

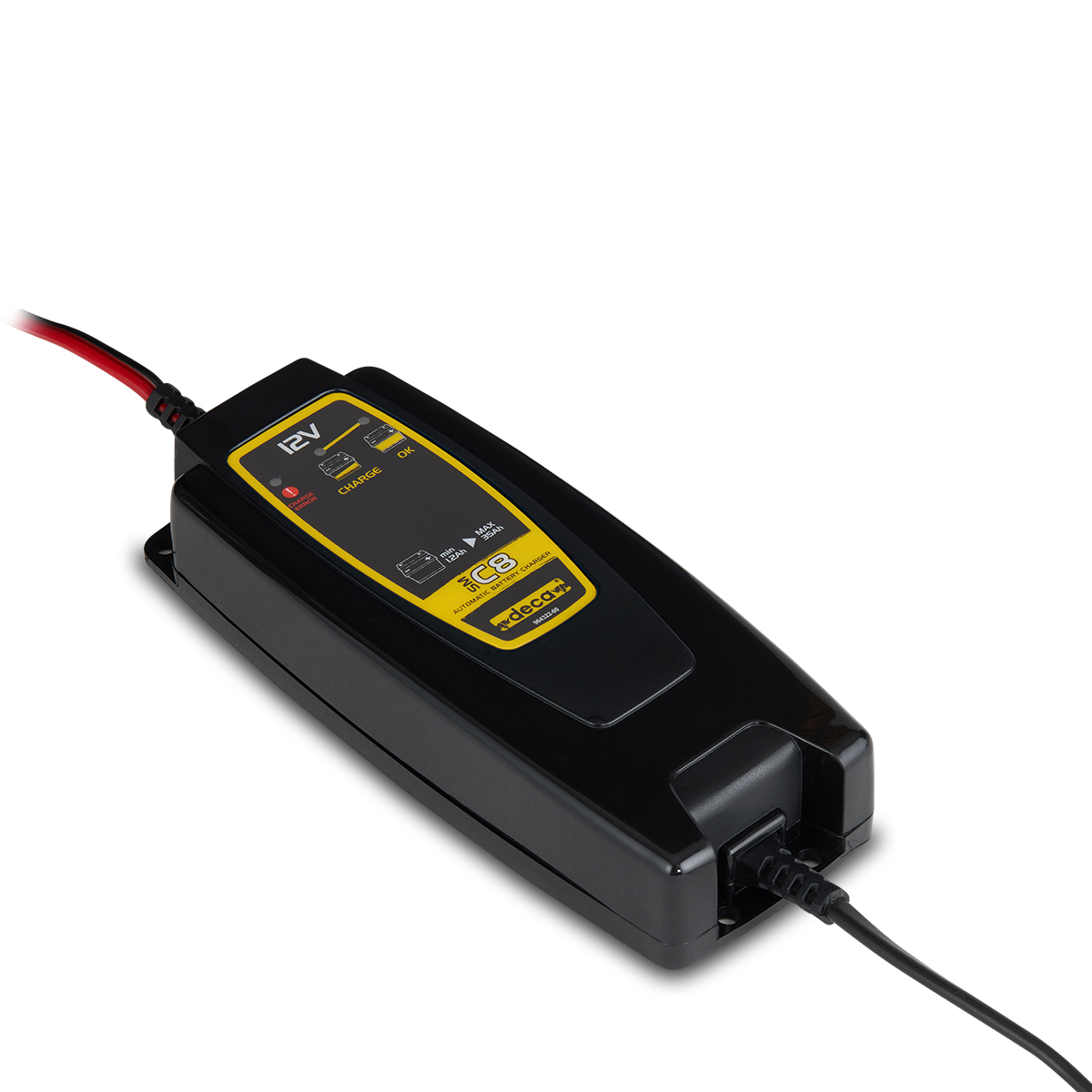

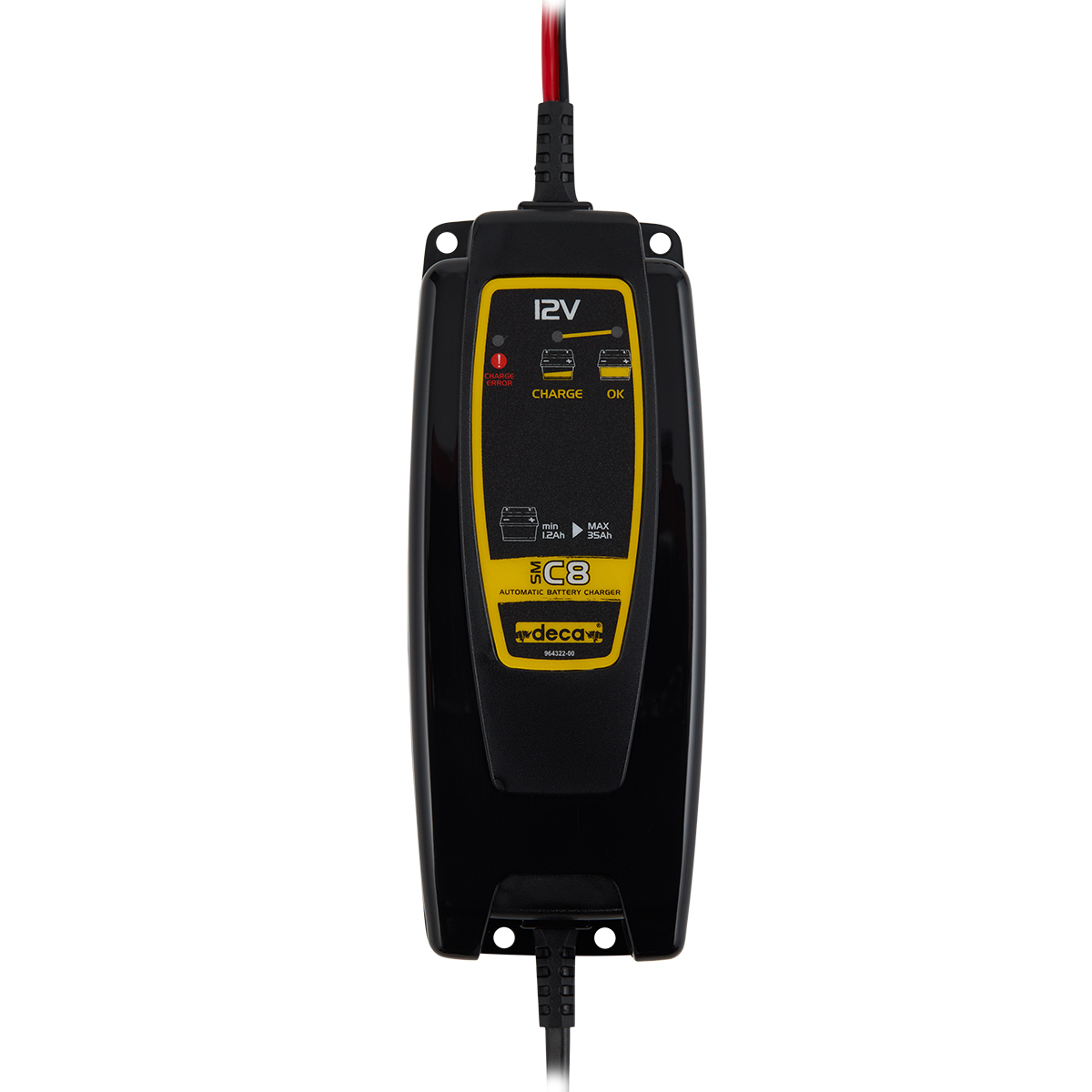

SM C8

Battery charger, Maintainer: 12V-0,8A.
Electronic control.

Code: 301800

SM C8 Automatic battery chargers with program for charge conservation.
SM C8 is designed for recharging the batteries of cars, motorcycles and motor vehicles and maintaining the charge even if they are not turned on for long periods.
Designed for 12 Volt batteries, with capacity from 1.2 to 35 Ah. In the maintainer function it can also manage larger batteries. large up to 100 Ah.
Suitable for charging lead batteries:WET serviceable and maintenance free, AGM, GEL, Start & Stop.

SM C8 applies a sophisticated multi-stage charging program to the batteries:
✓ Charge: constant current charge.
✓ Absorption: constant voltage charge.
✓ Pulse Maintenance: Keeps the battery ready for use through the pulse charge.

Safety guaranteed: designed to protect vehicle electronics. Non-sparking; reverse polarity protected and short-circuit proof.
Protection degree: IP65. Built for outdoor use.


Equipment: Cable with clamps, adapter to be permanently connected to the motorbike batteries.

Technical data

DATA SHEET TITOLO
Process MAINTENANCE
Technology Electronic
Standard
Mains voltage 50/60 Hz 1 X 230V
Maximum power absorbed 14W
Power while charging (P1)
Power while starting (P1)
Fuse
Nominal battery voltage 12V
Battery capacity, Min – Max 1,2 – 35Ah (100Ah Maintenance)
Automotive battery types PB: WET, MF, EFB, AGM, (GEL), Ca/Ca, Start&Stop
Average charging current 0,8A
Effective charging current
Number of charging settings
Charging programs Motorcycle
STANDARD CHARGE Charge / Absorption
CHARGE WITH EQUALIZATION
BATTERY EQUALIZATION
BATTERY DESULPHATION
DEEP CYCLE BATTERY CHARGE
LiFePo4 BATTERY CHARGE
CUSTOM CHARGING PROGRAM
Battery charging with timer
Charging Voltage limit 14,4V
Battery charge / equalization voltage limit
Equalization Voltage limit
Desulphation Voltage limit
Manual End of charge
Automatic End of charge
End-of-charge Pulse
Floating Voltage limit
Battery maintainer Voltage limit
SAFE CHARGE: Overvoltage limit. DIN 40839
POWER SUPPLY FOR THE DIAGNOSTIC
BATTERY CHANGE
POWER SUPPLY FOR SHOW ROOM
STABILIZED POWER SUPPLY
POWER SUPPLY
Boosting current, 1 Volt EL
Boosting current, 0 Volt / CC
Starting cycles
SAFE CHARGE / BOOST: Overvoltage limit. DIN 40839
Insulation class
Simbolo casa (uso all’interno)
Marchio EAC (Russia)
Marchio UKR (Ucraina)
Double isolation symbol
Fuse (secondary)

Features

CHARACTERISTICS TITOLO
Remote control
Portable
With wheels
Analog ammeter
Digital ammeter
Digital Voltmeter, Ampmeter
Display LCD
Battery charge status LED
Polarity inversion LED
Voltage compensation according to temperature sensor
Output connections
Serial port COM 1 for printer
SD card reader
CANbus connection
Thermostatic protection
Protection class IP65
Copper transformer
Cable organizer
Cable organizer
Cables length 1,6m
Reverse polarity / short circuit protection
High efficiency
Wall mounting
Fixing strap
Weight and Dimention PARAGRAFO
Weight approx kg 0,37
Dimensions L x W x H mm 157X62X30
LOGISTIC DATA TITOLO
Barcode 8011399031881
Package dimension: L x W x H mm 280X160X60
Package weight kg: 0,61
Pieces per pallet: 162

Functions

FUNCTIONS TITOLO
Battery diagnostics during charge
Detection of sulfated battery
Battery test
Test battery starting capacity
Alternator test
Automatic restart after power failure
Last program memory on power-on
Customizable menu
Language selection
Programs under password
Freeze in showroom mode
Cable length calibration
Motorcycle batteries charge maintainer
Car batteries charge maintainer
Power supply
Cars power supply in the showroom
Battery support during diagnostic
Battery change mode
