SC 60/700

Battery charger: 12/24V-60A. Start Assist 700A.
Electronic control.
Charge maintenance: Floating.

Code: 330200

SKU330200 Categories, , ,

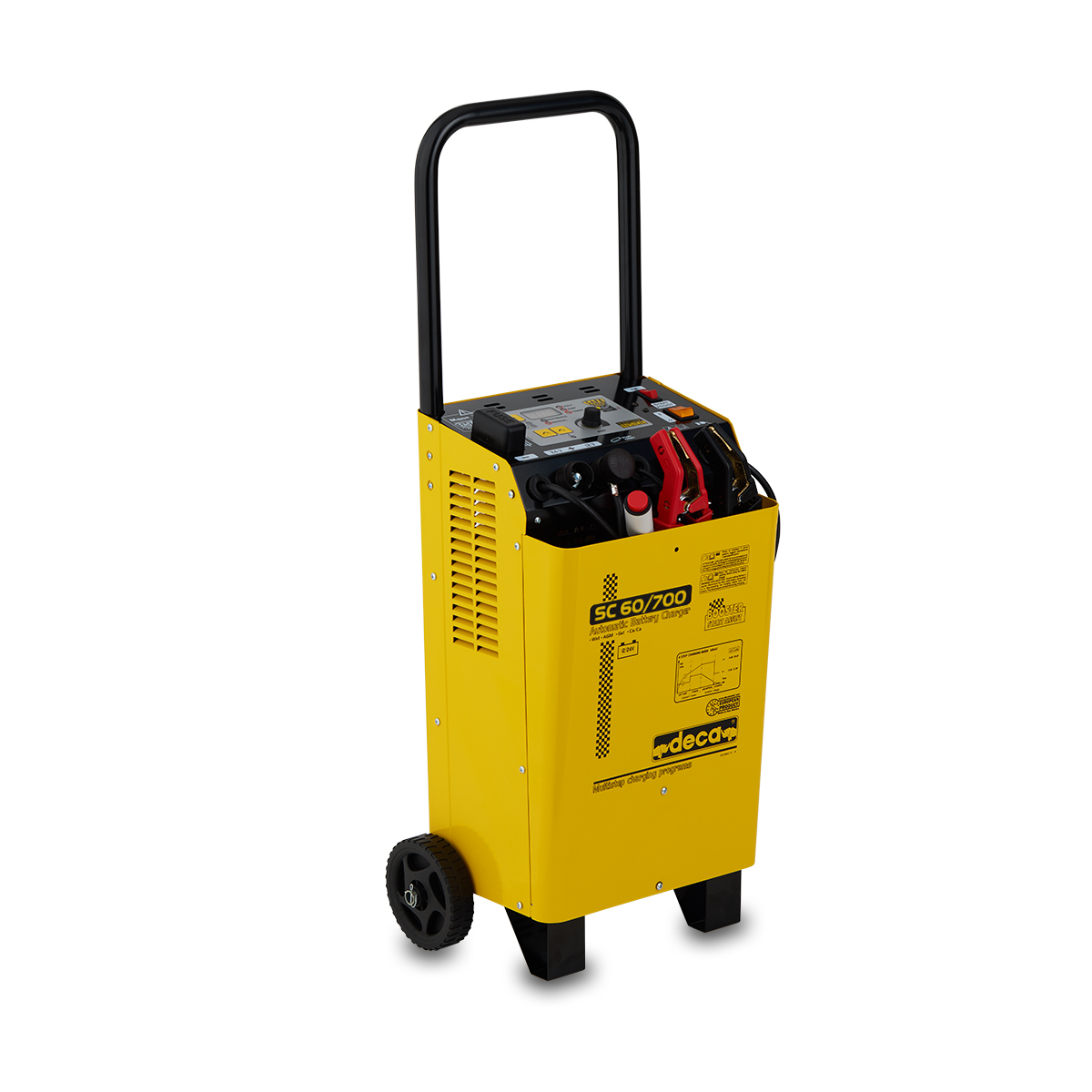

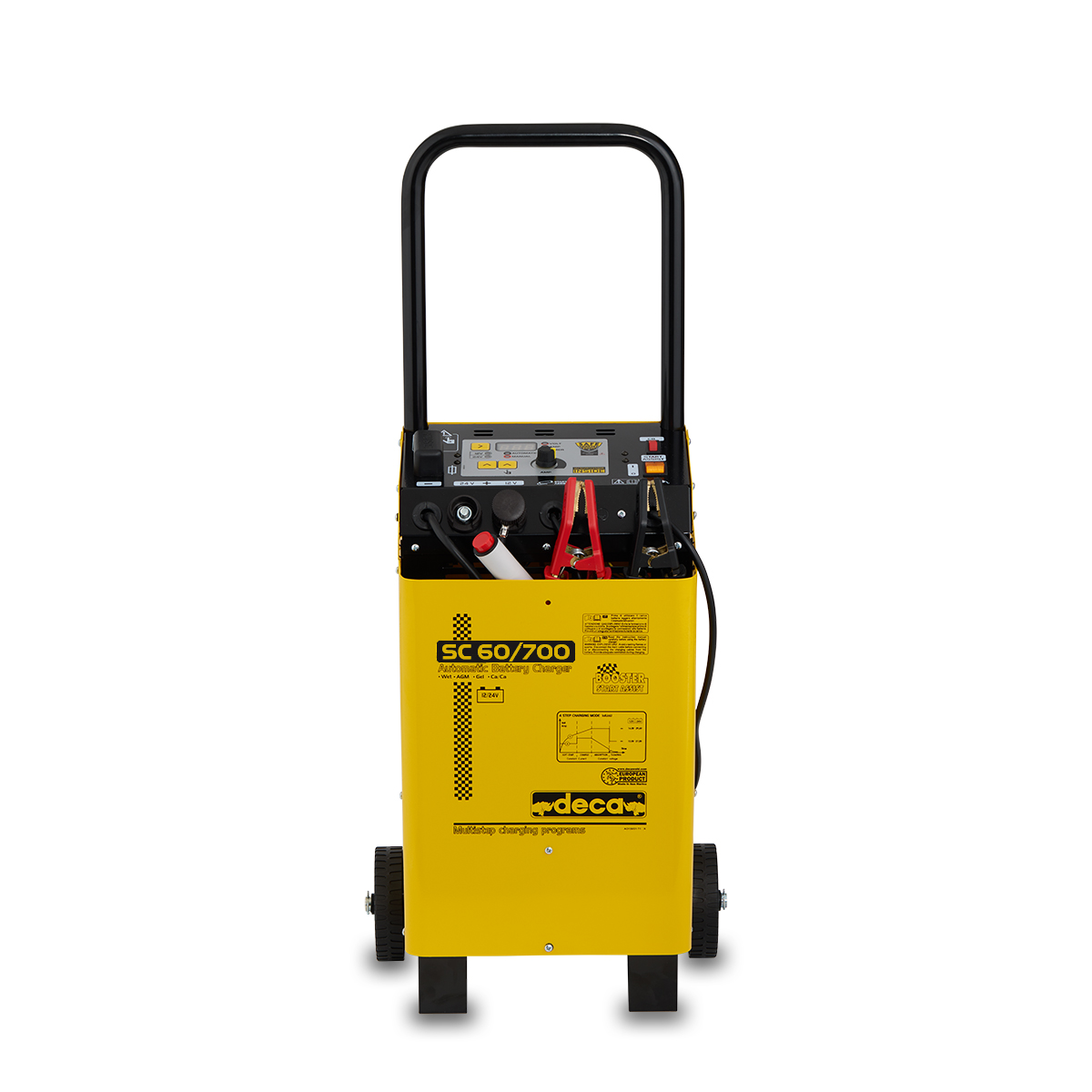

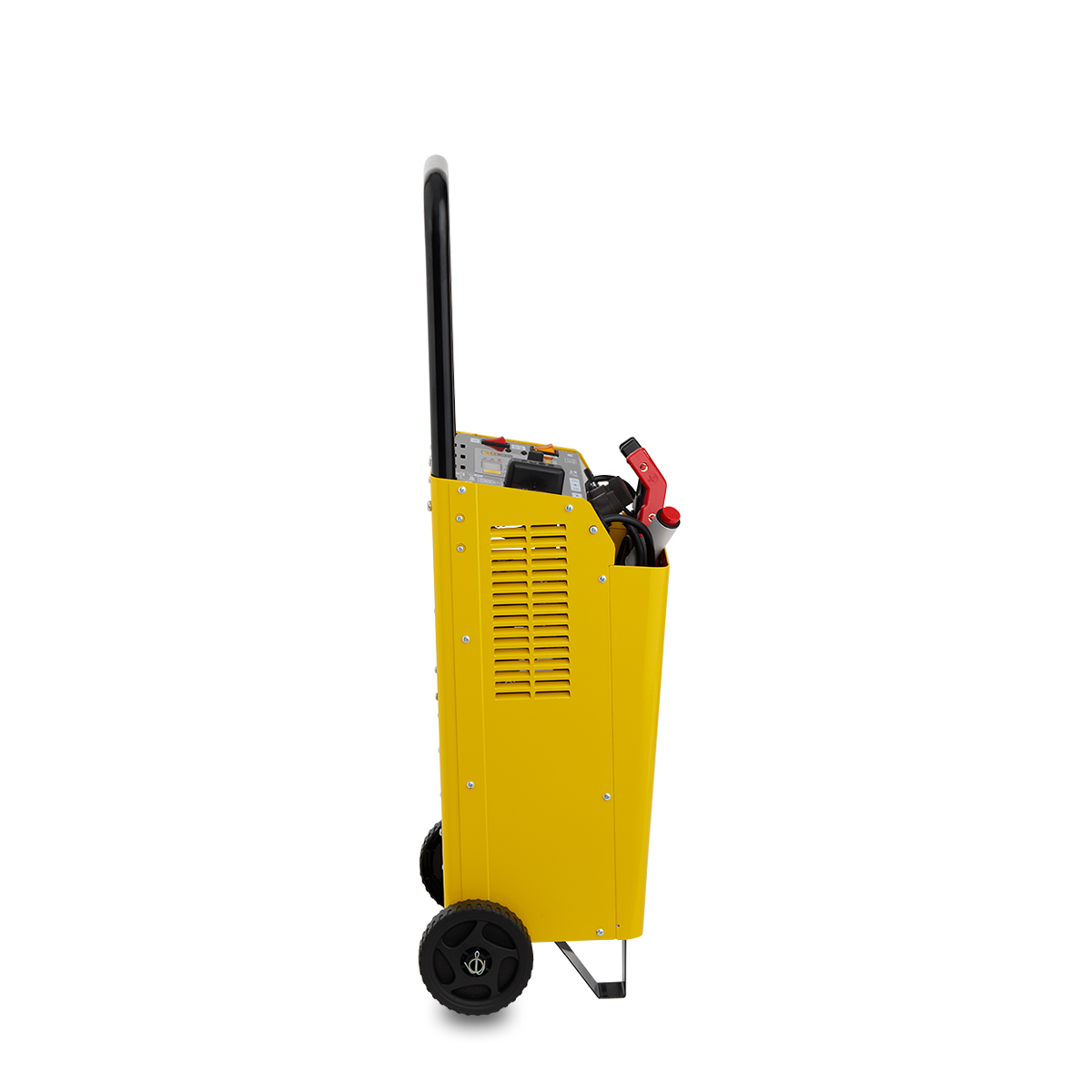

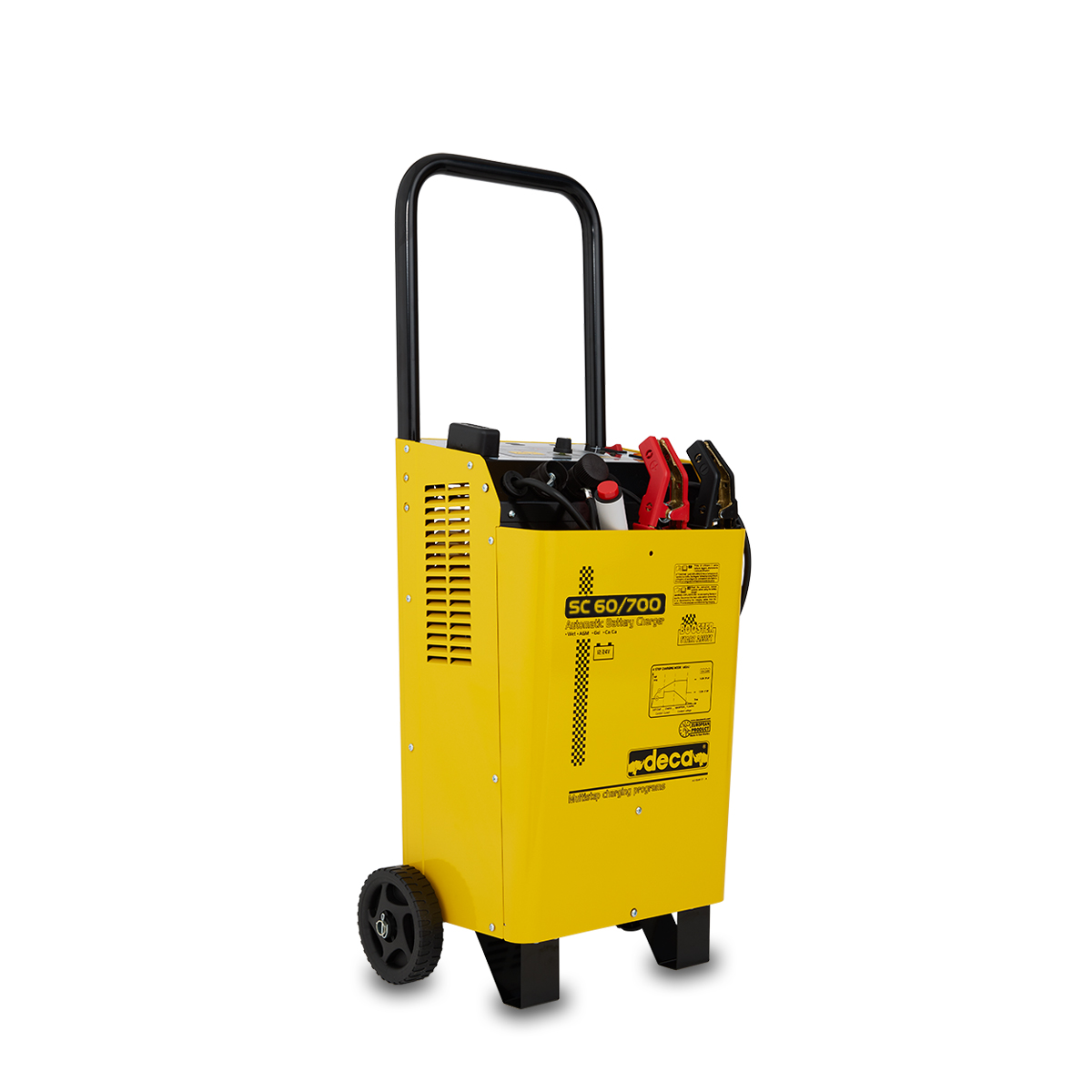

Professional battery charger and quick starter, controlled by microprocessor.
SCP 60/700 recharges 12, 24 Volt batteries, with capacity from 5 to 800 Ah.
It is suitable for charging lead batteries: WET serviceable and maintenance free, AGM, AGM Power, GEL, Start & Stop, Ca/Ca.

Its features make it the ideal for the workshop.

  • “Safe Charge & Boost”: The system protects the electronic components on the vehicle against interference and overvoltage that may be created at the charging or quick starting procedures. (DIN 408399 interference emission level I).
  • Multi step charging The batteries are charged by applying sophisticated multi-step programs.
  • Floating Can remain connected to the battery for a long time. Batteries are ready to use at all times.
  • Continuously adjustable charge current Lets you charge optimally batteries of all capacities (Ah).
  • Charging with timer
  • Boosting remote control

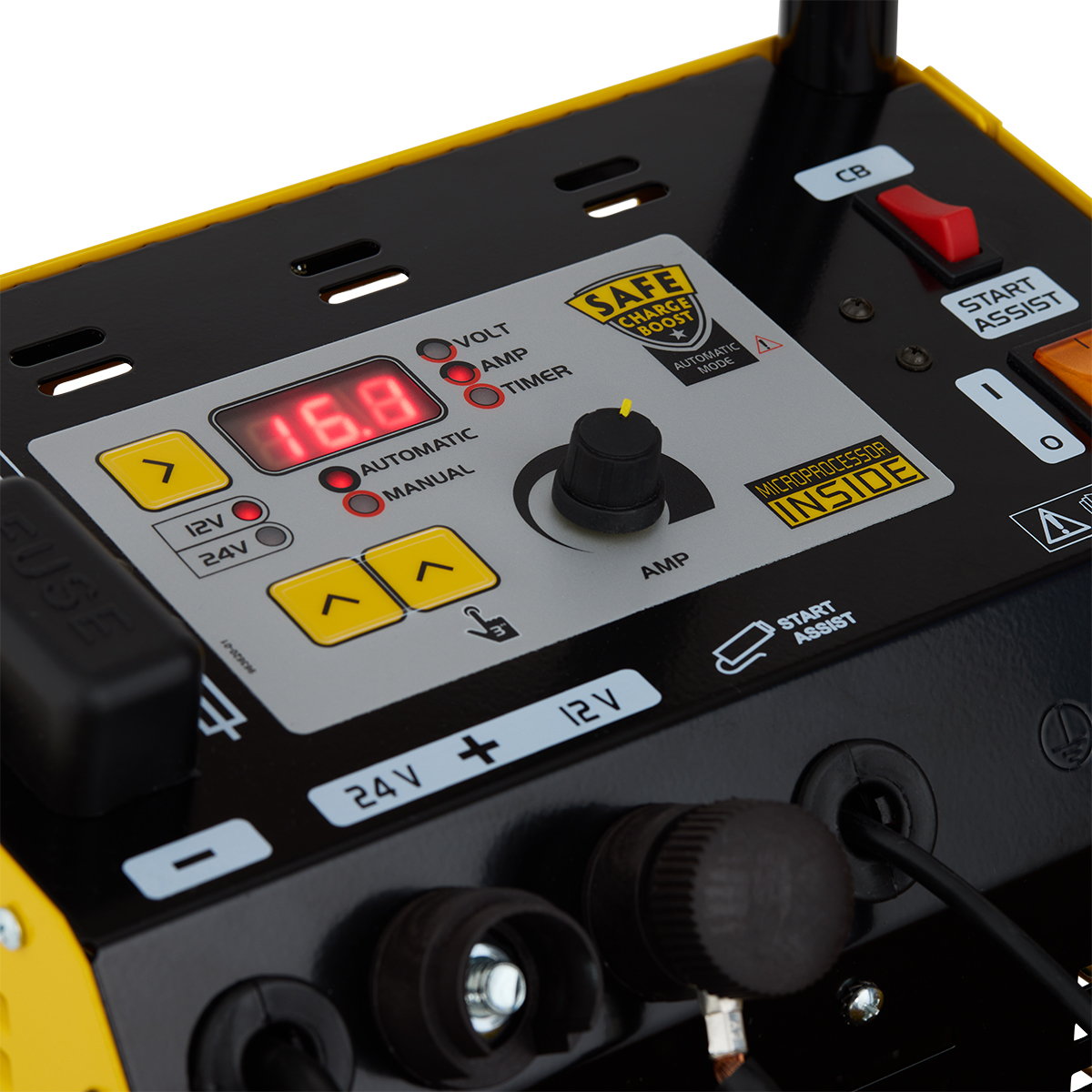

  • Digital Voltmeter / Ammeter
  • Overload protection with automatic reset
  • Protections against polarity inversion and short circuits
  • Heavy duty clamps

Technical data

DATA SHEET TITOLO
Process CHARGE / START ASSIST
Technology Electronic control
Standard
Mains voltage 50/60 Hz 1 X 230V
Maximum power absorbed 1,36 / 13,5kW
Power while charging (P1)
Power while starting (P1)
Fuse
Nominal battery voltage 12 / 24V
Battery capacity, Min – Max 5 – 800Ah
Automotive battery types PB: WET, MF, EFB, AGM, (GEL), Ca/Ca, Start&Stop
Average charging current MIn. 3A Max. 40A
Effective charging current 60A
Number of charging settings Stepless
Charging programs Standard Charge
STANDARD CHARGE Soft start / Charge / Absorption
CHARGE WITH EQUALIZATION
BATTERY EQUALIZATION
BATTERY DESULPHATION
DEEP CYCLE BATTERY CHARGE
LiFePo4 BATTERY CHARGE
CUSTOM CHARGING PROGRAM
Battery charging with timer
Charging Voltage limit (12V) 14,8V / (24V) 29,6V
Battery charge / equalization voltage limit
Equalization Voltage limit
Desulphation Voltage limit
Manual End of charge
Automatic End of charge
End-of-charge Float
Floating Voltage limit (12V) 13,5V / (24V) 27V
Battery maintainer Voltage limit
SAFE CHARGE: Overvoltage limit. DIN 40839
POWER SUPPLY FOR THE DIAGNOSTIC
BATTERY CHANGE
POWER SUPPLY FOR SHOW ROOM
STABILIZED POWER SUPPLY
POWER SUPPLY
Boosting current, 1 Volt EL 400A
Boosting current, 0 Volt / CC 700A
Starting cycles
SAFE CHARGE / BOOST: Overvoltage limit. DIN 40839 Man / Automatic
Insulation class
Simbolo casa (uso all’interno)
Marchio EAC (Russia)
Marchio UKR (Ucraina)
Double isolation symbol

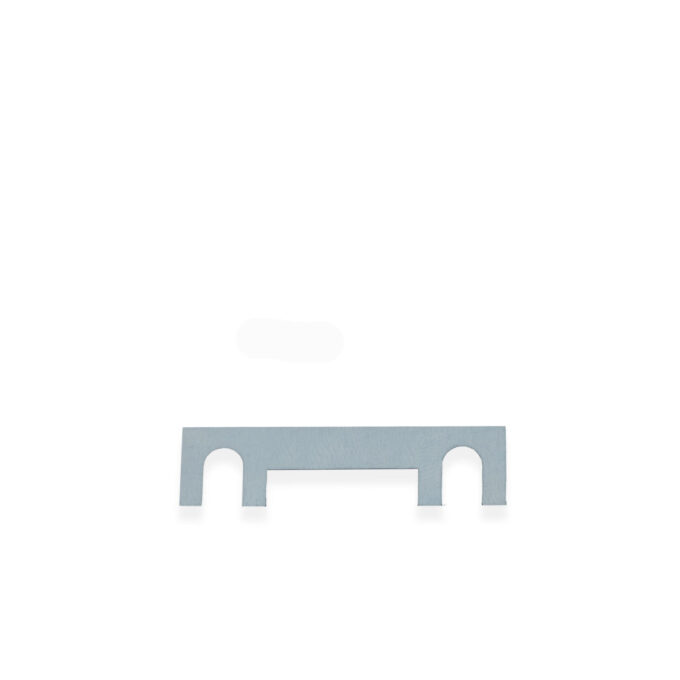

Fuse (secondary) 2x100A

Features

CHARACTERISTICS TITOLO
Remote control
Portable
With wheels
Analog ammeter
Digital ammeter
Digital Voltmeter, Ampmeter
Display LCD
Battery charge status LED
Polarity inversion LED
Voltage compensation according to temperature sensor
Output connections
Serial port COM 1 for printer
SD card reader
CANbus connection
Reverse polarity / short circuit protection
Thermostatic protection
Protection class
Copper transformer
Cable organizer
Cable organizer
Cables length 2m
High efficiency
Wall mounting
Fixing strap
Weight and Dimention PARAGRAFO
Weight approx kg 23,80
Dimensions L x W x H mm 280X390X900
LOGISTIC DATA TITOLO
Barcode 8011399029246
Package dimension: L x W x H mm 610X320X310
Package weight kg: 24,70
Pieces per pallet: 16

Functions

FUNCTIONS TITOLO
Battery diagnostics during charge
Detection of sulfated battery
Battery test
Test battery starting capacity
Alternator test
Automatic restart after power failure
Last program memory on power-on
Customizable menu
Language selection
Programs under password
Freeze in showroom mode
Cable length calibration
Motorcycle batteries charge maintainer
Car batteries charge maintainer
Power supply
Cars power supply in the showroom
Battery support during diagnostic
Battery change mode
