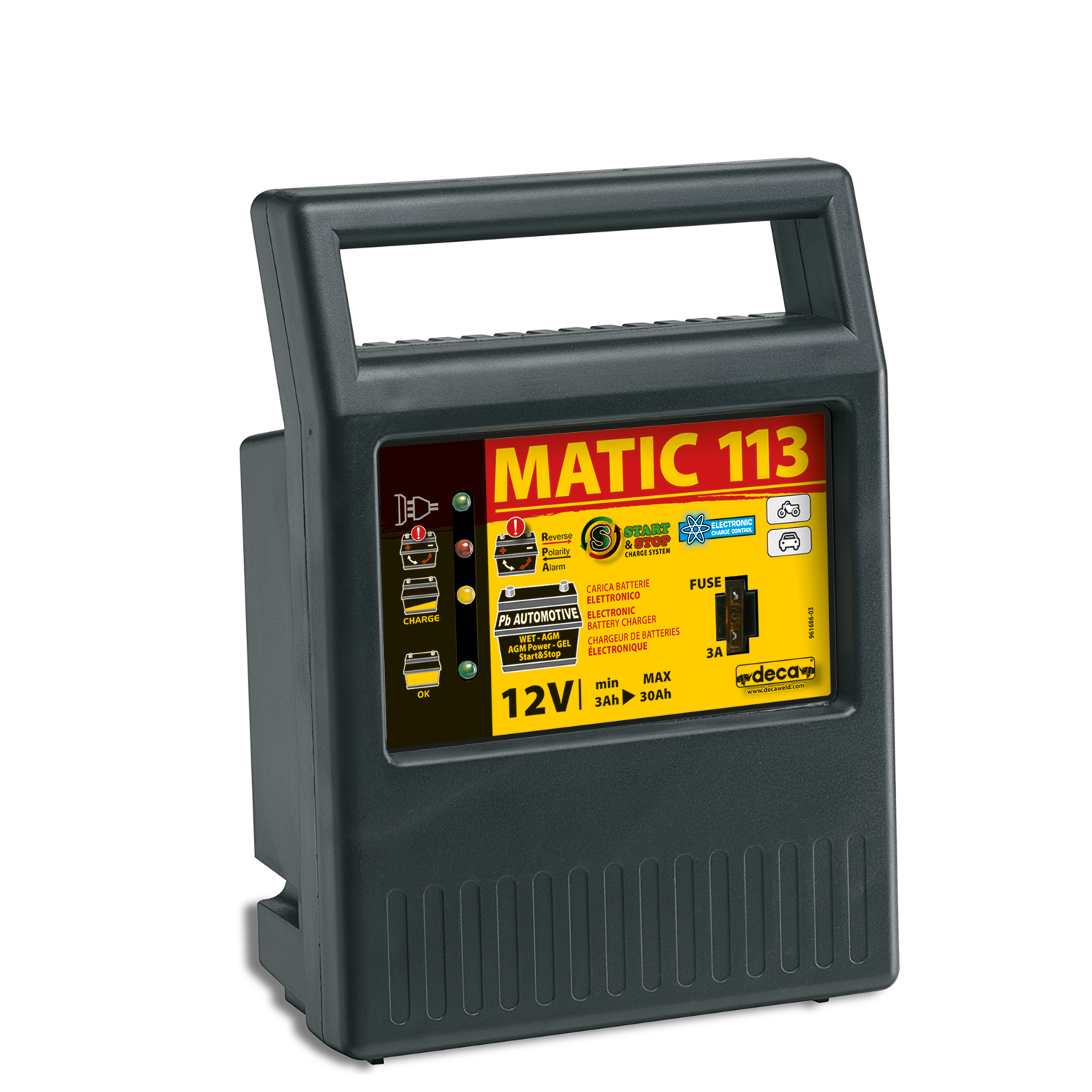

MATIC 113

Battery charger, Maintainer: 12V-1,5A.
Automatic cut-off charge.

Code: 300400

SKU300400 CategoriesBATTERY CHARGERS-BOOSTERS, Product categories, BAttery technology, Vehicle type

The products of the MACH SERIES are Fully automatic battery chargers with electronic charge control automatic charge breaker and automatic reset.

MATIC 113 is designed for 12 Volt lead batteries: WET serviceable and maintenance free, AGM, GEL with capacity from 3 to 30 Ah.
The power supply is single phase 230 Volt.
The battery charger is equipped with a charging control that interrupts it when the battery has reached the correct voltage, and then resumes it if the battery runs out.

MATIC 113 is equipped with a control panel to check the presence of the power supply, the correct connection of the clamps to the battery and the charging status.
The battery charger is protected against possible polarity inversions or short circuits to the clamps.

Technical data

DATA SHEET	TITOLO
Process	CHARGE
Technology	Traditional
Standard
Mains voltage 50/60 Hz	1 X 230V
Maximum power absorbed	30W
Power while charging (P1)
Power while starting (P1)
Fuse
Nominal battery voltage	12V
Battery capacity, Min – Max	3 – 30Ah
Automotive battery types	Pb: WET, MF, EFB, (GEL), (AGM) Ca/Ca, Start&Stop
Average charging current	1A
Effective charging current	1,5A
Number of charging settings
Charging programs
STANDARD CHARGE
CHARGE WITH EQUALIZATION
BATTERY EQUALIZATION
BATTERY DESULPHATION
DEEP CYCLE BATTERY CHARGE
LiFePo4 BATTERY CHARGE
CUSTOM CHARGING PROGRAM
Battery charging with timer
Charging Voltage limit
Battery charge / equalization voltage limit
Equalization Voltage limit
Desulphation Voltage limit
Manual End of charge
Automatic End of charge
End-of-charge
Floating Voltage limit
Battery maintainer Voltage limit
SAFE CHARGE: Overvoltage limit. DIN 40839
POWER SUPPLY FOR THE DIAGNOSTIC
BATTERY CHANGE
POWER SUPPLY FOR SHOW ROOM
STABILIZED POWER SUPPLY
POWER SUPPLY
Boosting current, 1 Volt EL
Boosting current, 0 Volt / CC
Starting cycles
SAFE CHARGE / BOOST: Overvoltage limit. DIN 40839
Insulation class
Simbolo casa (uso all’interno)
Marchio EAC (Russia)
Marchio UKR (Ucraina)
Double isolation symbol
Fuse (secondary)	3A

Features

CHARACTERISTICS	TITOLO
Remote control
Portable
With wheels
Analog ammeter
Digital ammeter
Digital Voltmeter, Ampmeter
Display LCD
Battery charge status LED
Polarity inversion LED
Voltage compensation according to temperature sensor
Output connections
Serial port COM 1 for printer
SD card reader
CANbus connection
Reverse polarity / short circuit protection
Thermostatic protection
Protection class
Copper transformer
Cable organizer
Cable organizer
Cables length	0,9m
High efficiency
Wall mounting
Fixing strap
Weight and Dimention	PARAGRAFO
Weight approx kg	1,23
Dimensions L x W x H mm	92X160X225
LOGISTIC DATA	TITOLO
Barcode	8011399019223
Package dimension: L x W x H mm	102X163X229
Package weight kg:	1,40
Pieces per pallet:	318

Functions

FUNCTIONS	TITOLO
Battery diagnostics during charge
Detection of sulfated battery
Battery test
Test battery starting capacity
Alternator test
Automatic restart after power failure
Last program memory on power-on
Customizable menu
Language selection
Programs under password
Freeze in showroom mode
Cable length calibration
Motorcycle batteries charge maintainer
Car batteries charge maintainer
Power supply
Cars power supply in the showroom
Battery support during diagnostic
Battery change mode

Attachments

Accessories

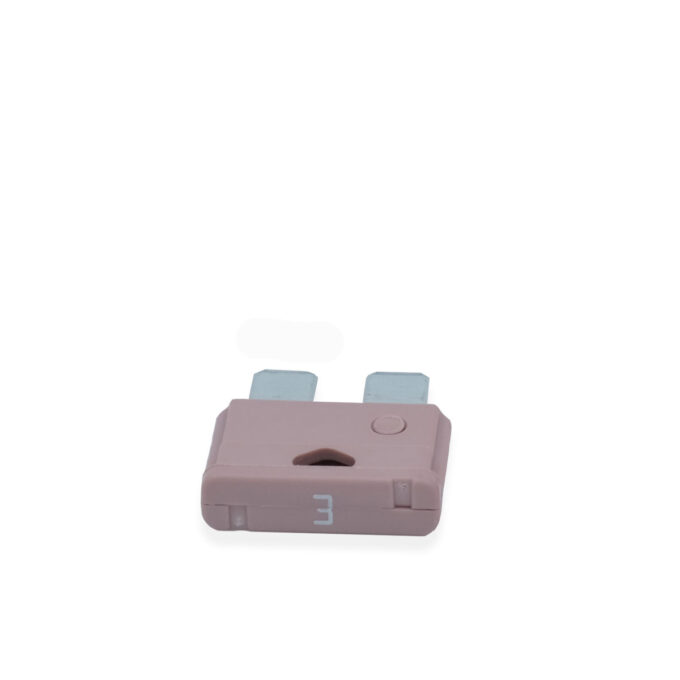

Fuse 3Amps (purple) – 10pcs
Code: 010279
