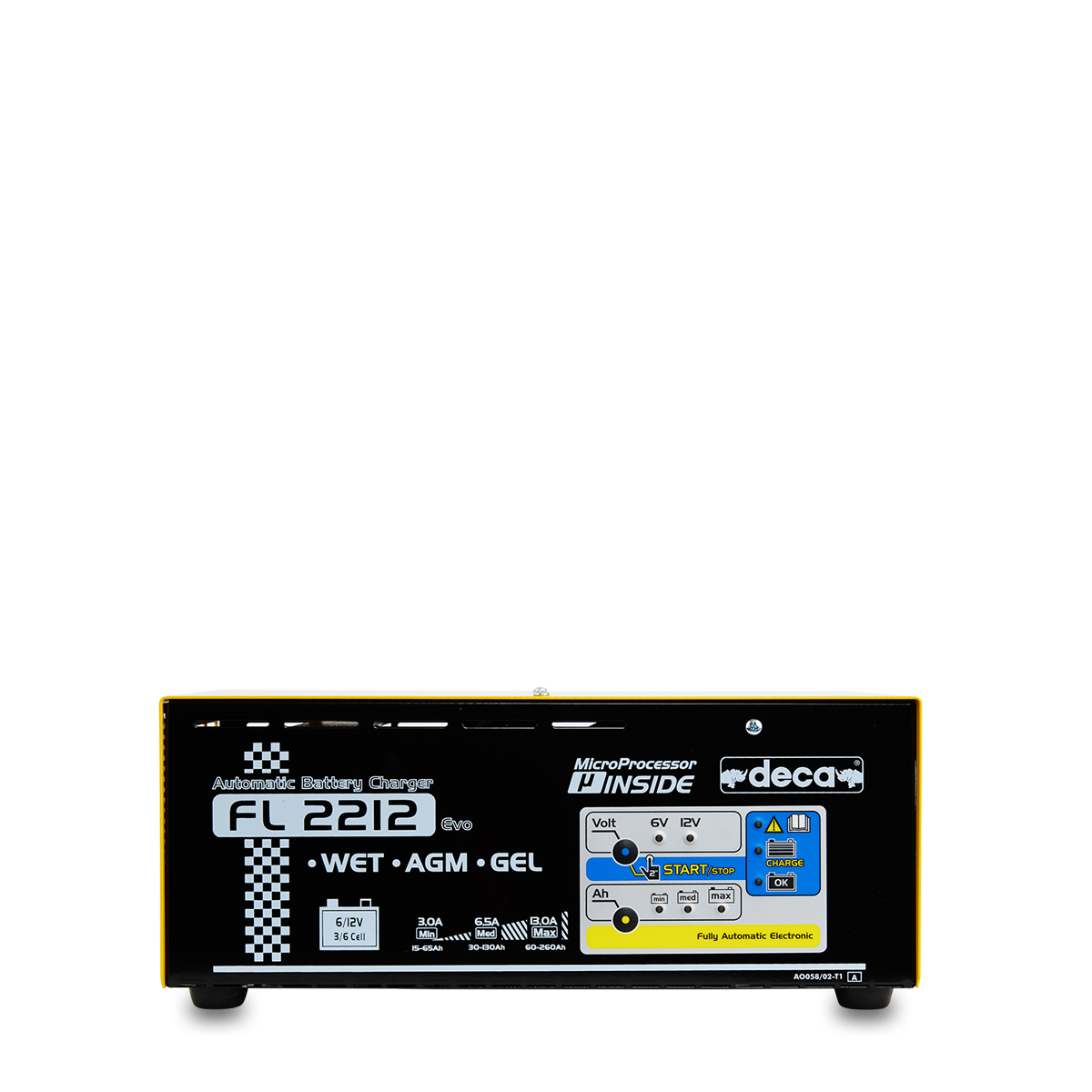

FL 2212

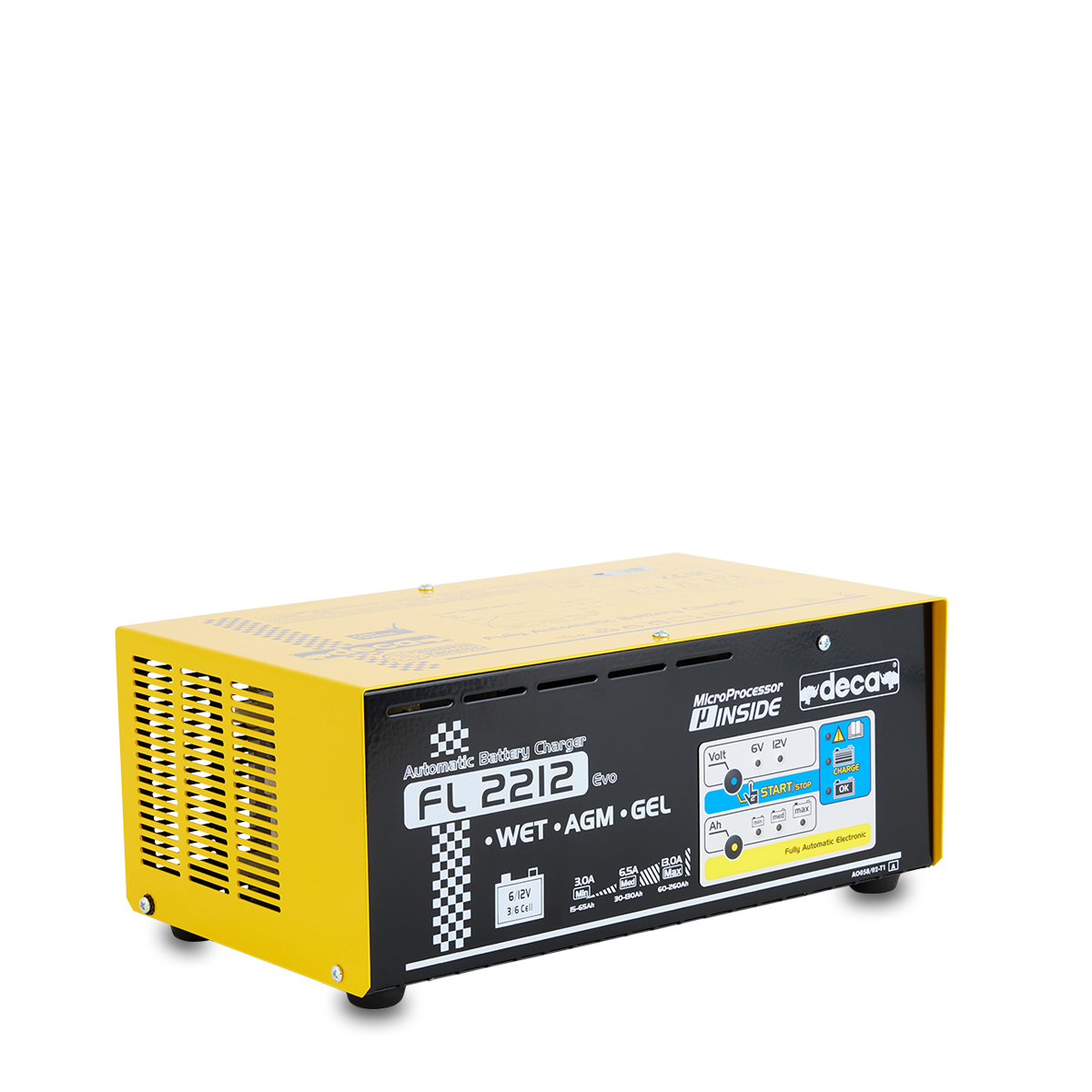

FL 2212 - Image 2

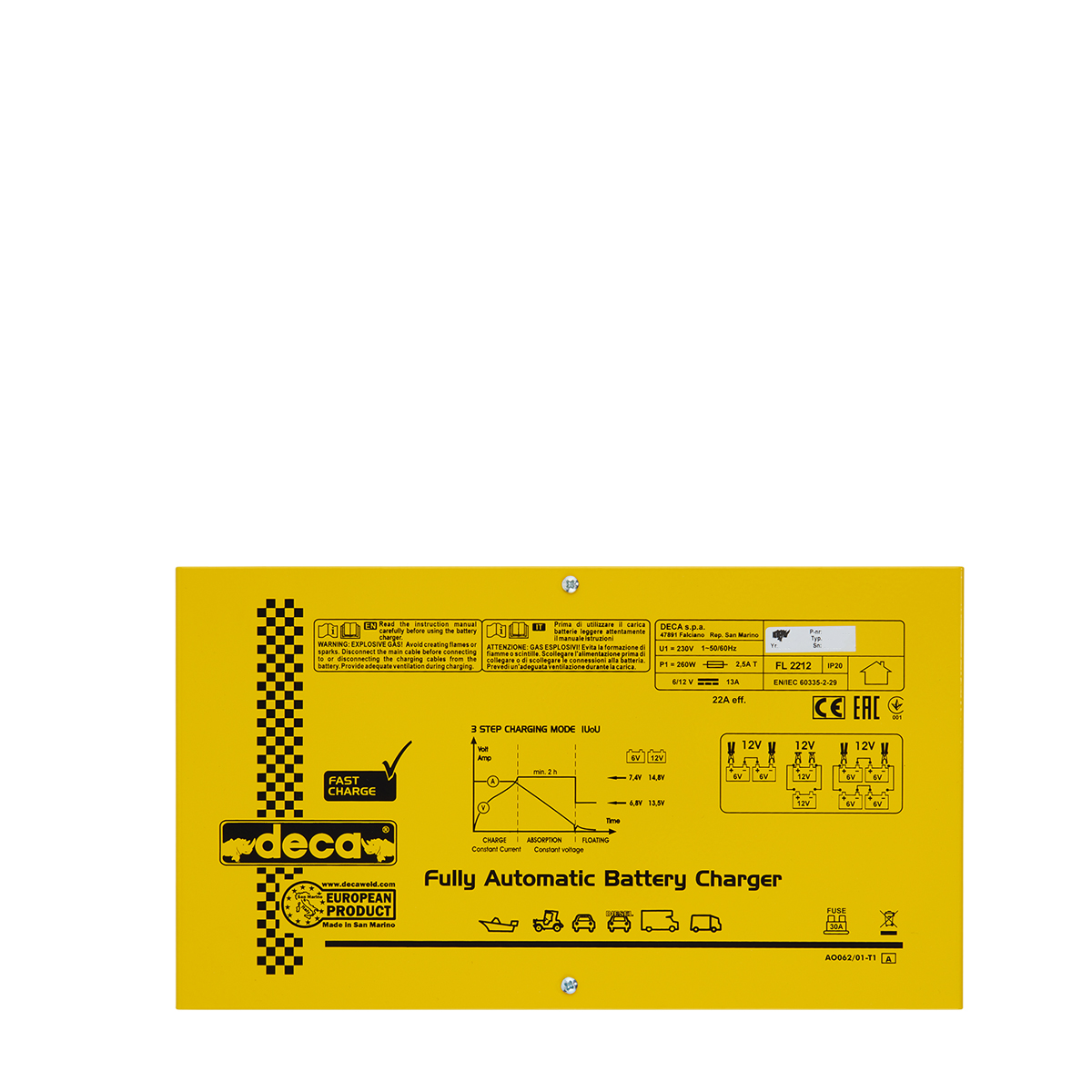

FL 2212 - Image 3

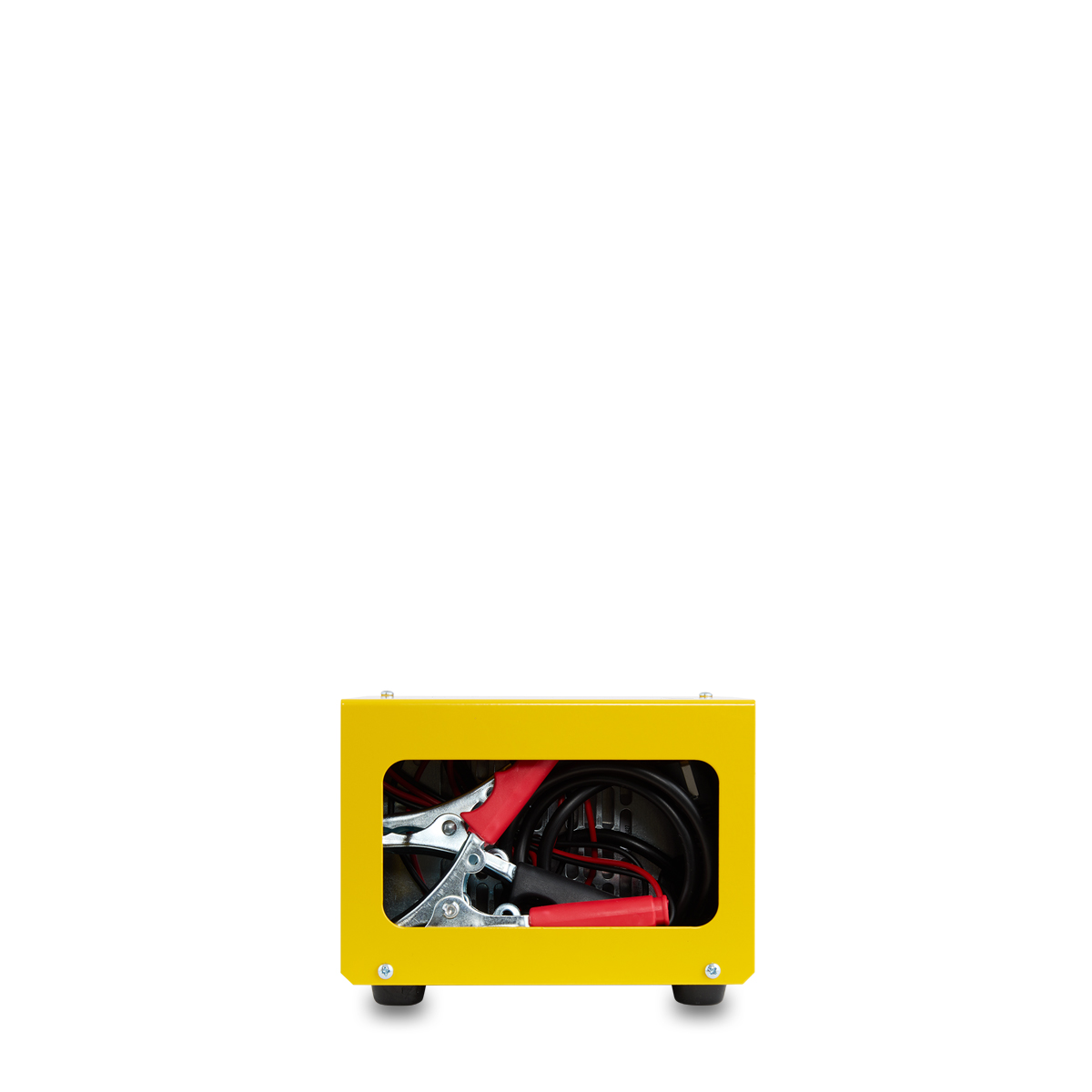

FL 2212 - Image 4

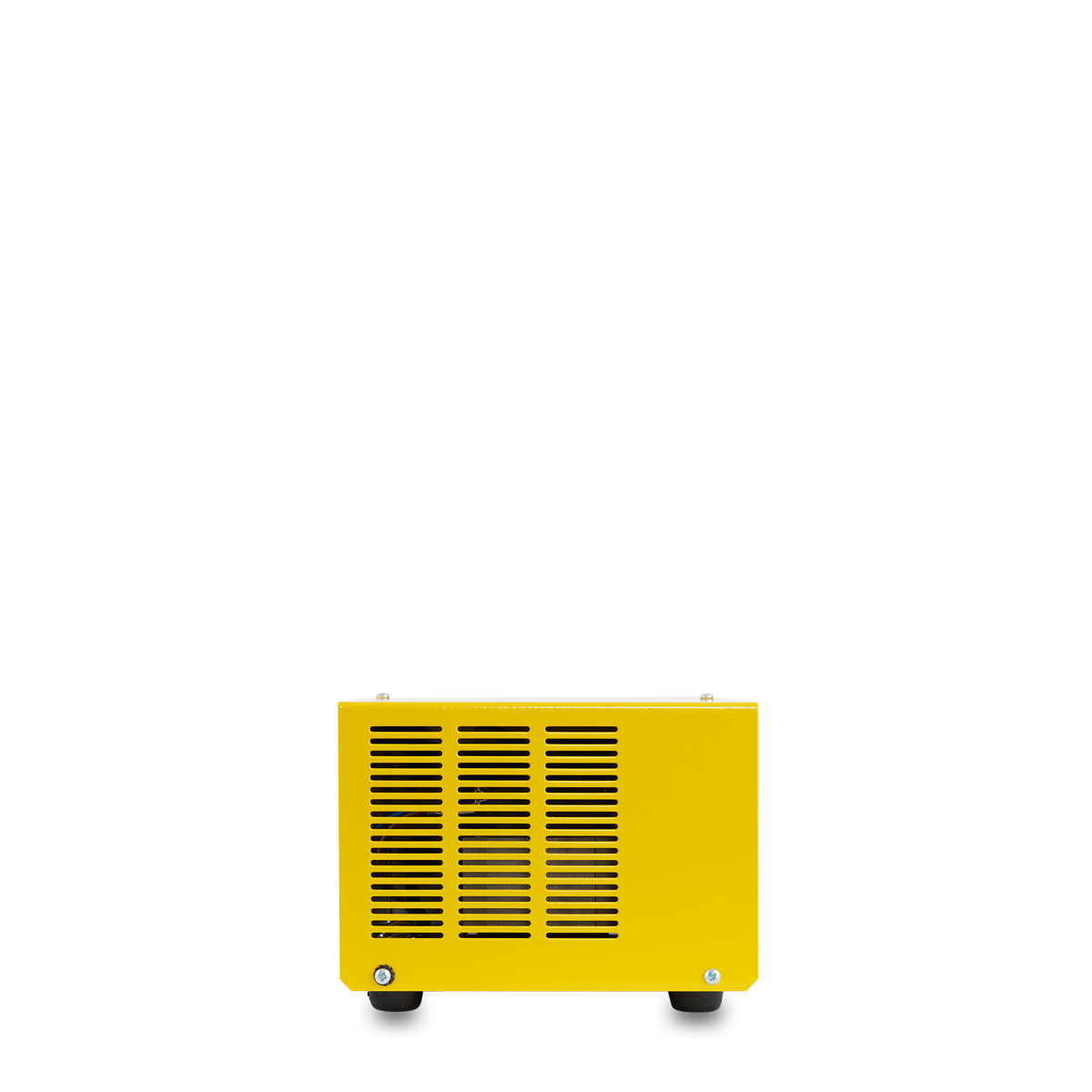

FL 2212 - Image 5

FL 2212

Battery charger: 6/12V-22A.
Electronic control.
Charge maintenance: Floating.

Code: 319700

SKU319700 Categories, , ,

Fully automatic battery chargers built with electronic charge control and charging conservation “Floating”.
FL 2212 recharges 6, 12 Volt batteries, with capacity from 15 to 260 Ah.
It is suitable for charging lead batteries: WET serviceable and maintenance free, AGM, AGM Power, GEL, Start & Stop, Ca/Ca.

Its features make it the ideal for the workshop and private.

  • Multi step charging The batteries are charged by applying sophisticated multi-step programs.
  • High efficiency ” I-U “ Charging characteristic (constant current-constant voltage) minimises battery charging time.
  • Floating Can remain connected to the battery for a long time. Batteries are ready to use at all times.
  • Safety guaranteed Designed to protect vehicle electronics. Non-sparking. Reverse polarity protected and short-circuit proof. Charging voltage is free of interference and voltage peaks. Allow battery charging directly on the vehicle electrical system, without disconnecting the battery. (DIN 40839 interference emission level I)

Technical data

DATA SHEET TITOLO
Process CHARGE
Technology Electronic control
Standard
Mains voltage 50/60 Hz 1 X 230V
Maximum power absorbed 260W
Power while charging (P1)
Power while starting (P1)
Fuse
Nominal battery voltage 6 / 12V
Battery capacity, Min – Max 15 – 260Ah
Automotive battery types PB: WET, MF, EFB, AGM, (GEL), Ca/Ca, Start&Stop
Average charging current 3 – 6,5 – 13A
Effective charging current 22A
Number of charging settings
Charging programs Standard Charge
STANDARD CHARGE Charge / Absorption
CHARGE WITH EQUALIZATION
BATTERY EQUALIZATION
BATTERY DESULPHATION
DEEP CYCLE BATTERY CHARGE
LiFePo4 BATTERY CHARGE
CUSTOM CHARGING PROGRAM
Battery charging with timer
Charging Voltage limit (6V) 7,4V / (12V) 14,8V
Battery charge / equalization voltage limit
Equalization Voltage limit
Desulphation Voltage limit
Manual End of charge
Automatic End of charge
End-of-charge Float
Floating Voltage limit (6V) 6,8V / (12V) 13,5V
Battery maintainer Voltage limit
SAFE CHARGE: Overvoltage limit. DIN 40839
POWER SUPPLY FOR THE DIAGNOSTIC
BATTERY CHANGE
POWER SUPPLY FOR SHOW ROOM
STABILIZED POWER SUPPLY
POWER SUPPLY
Boosting current, 1 Volt EL
Boosting current, 0 Volt / CC
Starting cycles
SAFE CHARGE / BOOST: Overvoltage limit. DIN 40839
Insulation class
Simbolo casa (uso all’interno)
Marchio EAC (Russia)
Marchio UKR (Ucraina)
Double isolation symbol
Fuse (secondary) 30A

Features

CHARACTERISTICS TITOLO
Remote control
Portable
With wheels
Analog ammeter
Digital ammeter
Digital Voltmeter, Ampmeter
Display LCD
Battery charge status LED
Polarity inversion LED
Voltage compensation according to temperature sensor
Output connections
Serial port COM 1 for printer
SD card reader
CANbus connection
Reverse polarity / short circuit protection
Thermostatic protection
Protection class
Copper transformer
Cable organizer
Cable organizer
Cables length 1,4m
High efficiency
Wall mounting
Fixing strap
Weight and Dimention PARAGRAFO
Weight approx kg 5,61
Dimensions L x W x H mm 175X312X127
LOGISTIC DATA TITOLO
Barcode 8011399025941
Package dimension: L x W x H mm 190X325X145
Package weight kg: 5,93
Pieces per pallet: 72

Functions

FUNCTIONS TITOLO
Battery diagnostics during charge
Detection of sulfated battery
Battery test
Test battery starting capacity
Alternator test
Automatic restart after power failure
Last program memory on power-on
Customizable menu
Language selection
Programs under password
Freeze in showroom mode
Cable length calibration
Motorcycle batteries charge maintainer
Car batteries charge maintainer
Power supply
Cars power supply in the showroom
Battery support during diagnostic
Battery change mode
