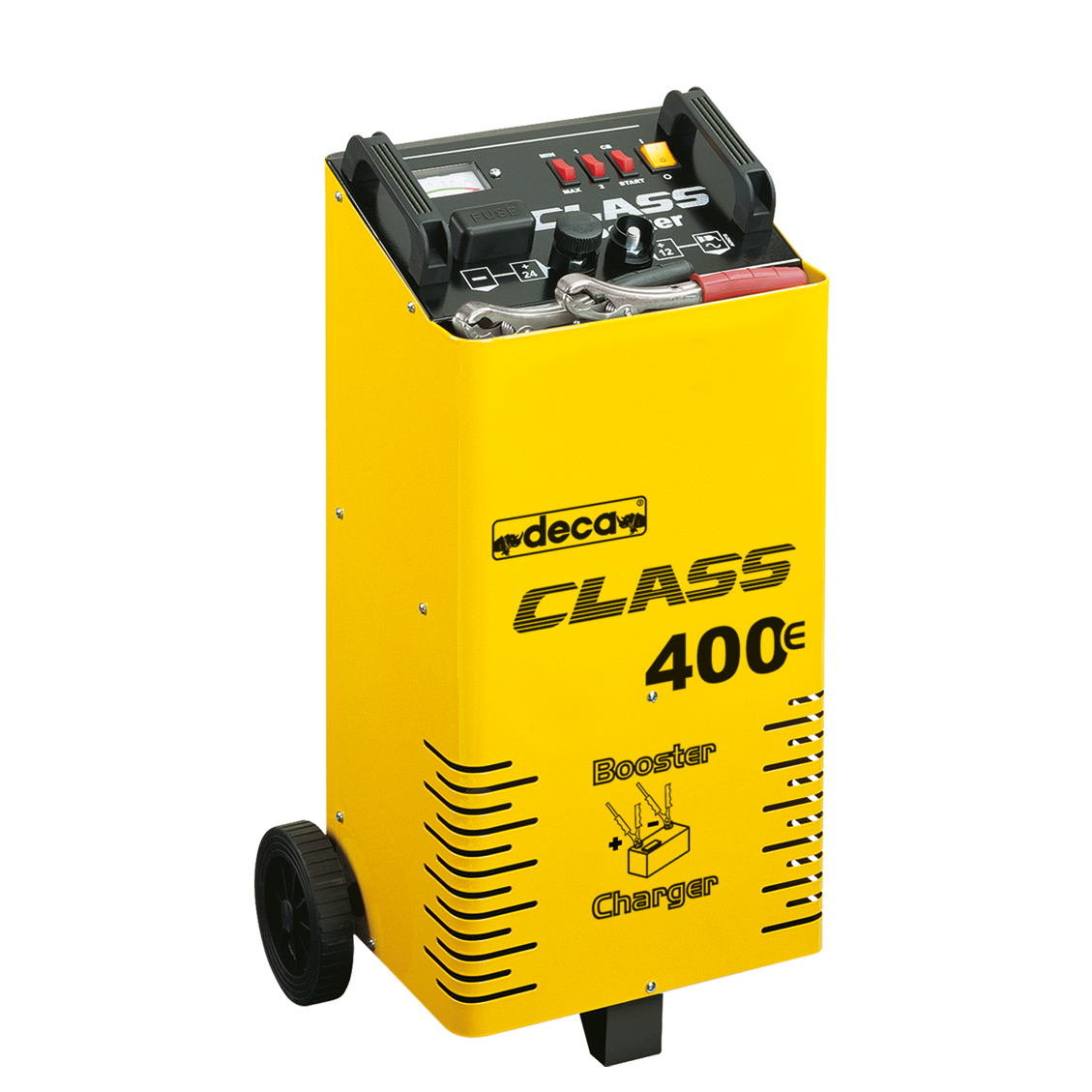

CLASS BOOSTER 400E
CLASS BOOSTER 400E - Image 2

CLASS BOOSTER 400E

Battery charger: 12/24V-40A. Start Assist 400A.
Manual cut-off charge

Code: 354100

SKU354100 Categories, , ,

The products of the CLASS Booster series are classic battery chargers for WET lead-acid batteries and quick starters,

CLASS Booster 400E is designed for traditional 12 and 24 Volt WET liquid electrolyte lead batteries with capacity from 35 to 500 Ah.
The power supply is single phase 230 Volt.
There are 4 current settings to best adapt to the various batteries.
An analog ammeter allow to check the current supplied and the battery charge status.
The end of the battery charge is manual.

CLASS Booster 400E is equipped with the BOOSTER – START ASSIST function to help the vehicle battery start the engine.

The battery charger is protected against possible polarity inversions or short circuits to the clamps.
The transformer is equipped with an automatically resetting thermostatic protection.

Technical data

DATA SHEET TITOLO
Process CHARGE / START ASSIST
Technology Traditional
Standard
Mains voltage 50/60 Hz 1 X 230V
Maximum power absorbed 1,3 / 9kW
Power while charging (P1)
Power while starting (P1)
Fuse
Nominal battery voltage 12 / 24V
Battery capacity, Min – Max 35 – 500Ah
Automotive battery types Pb WET, MF, (AGM)
Average charging current 26A
Effective charging current 40A
Number of charging settings 4
Charging programs
STANDARD CHARGE
CHARGE WITH EQUALIZATION
BATTERY EQUALIZATION
BATTERY DESULPHATION
DEEP CYCLE BATTERY CHARGE
LiFePo4 BATTERY CHARGE
CUSTOM CHARGING PROGRAM
Battery charging with timer
Charging Voltage limit
Battery charge / equalization voltage limit
Equalization Voltage limit
Desulphation Voltage limit
Manual End of charge
Automatic End of charge
End-of-charge
Floating Voltage limit
Battery maintainer Voltage limit
SAFE CHARGE: Overvoltage limit. DIN 40839
POWER SUPPLY FOR THE DIAGNOSTIC
BATTERY CHANGE
POWER SUPPLY FOR SHOW ROOM
STABILIZED POWER SUPPLY
POWER SUPPLY
Boosting current, 1 Volt EL 270A
Boosting current, 0 Volt / CC 400A
Starting cycles
SAFE CHARGE / BOOST: Overvoltage limit. DIN 40839
Insulation class
Simbolo casa (uso all’interno)
Marchio EAC (Russia)
Marchio UKR (Ucraina)
Double isolation symbol

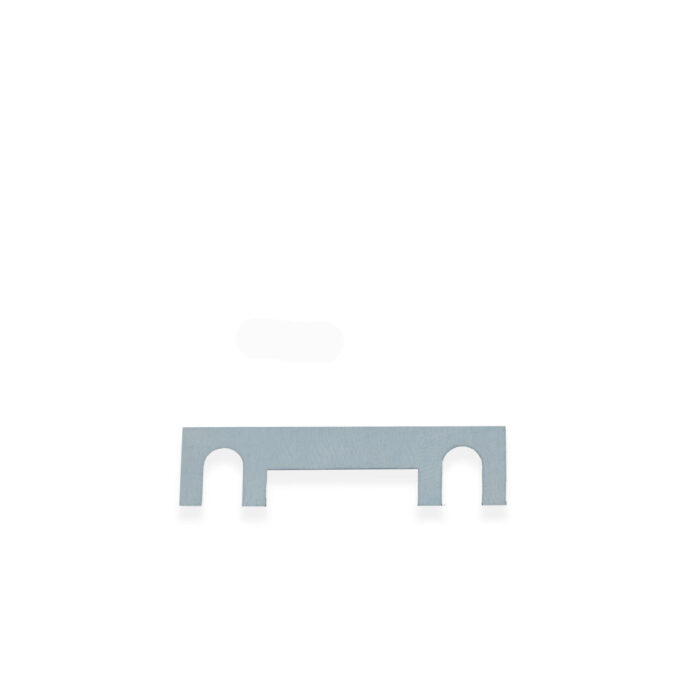

Fuse (secondary) 1 x 50 + 1 x 80A

Features

CHARACTERISTICS TITOLO
Remote control
Portable
With wheels
Analog ammeter
Digital ammeter
Digital Voltmeter, Ampmeter
Display LCD
Battery charge status LED
Polarity inversion LED
Voltage compensation according to temperature sensor
Output connections
Serial port COM 1 for printer
SD card reader
CANbus connection
Reverse polarity / short circuit protection
Thermostatic protection
Protection class
Copper transformer
Cable organizer
Cable organizer
Cables length 1,5m
High efficiency
Wall mounting
Fixing strap
Weight and Dimention PARAGRAFO
Weight approx kg 17,90
Dimensions L x W x H mm 300X400X640
LOGISTIC DATA TITOLO
Barcode 8011399010879
Package dimension: L x W x H mm 610X310X265
Package weight kg: 18,70
Pieces per pallet: 24

Functions

FUNCTIONS TITOLO
Battery diagnostics during charge
Detection of sulfated battery
Battery test
Test battery starting capacity
Alternator test
Automatic restart after power failure
Last program memory on power-on
Customizable menu
Language selection
Programs under password
Freeze in showroom mode
Cable length calibration
Motorcycle batteries charge maintainer
Car batteries charge maintainer
Power supply
Cars power supply in the showroom
Battery support during diagnostic
Battery change mode
