The products of the CLASS series are classic battery chargers for WET lead-acid batteries
CLASS 16A is designed for traditional 12 and 24 Volt WET liquid electrolyte lead batteries with capacity from 20 to 200 Ah.
The power supply is single phase 230 Volt.
There are 2 current settings to best adapt to the various batteries.
An analog ammeter allow to check the current supplied and the battery charge status.
The end of the battery charge is manual.
The battery charger is protected against possible polarity inversions or short circuits to the clamps.
The transformer with copper windings is equipped with an automatically resetting thermostatic protection.

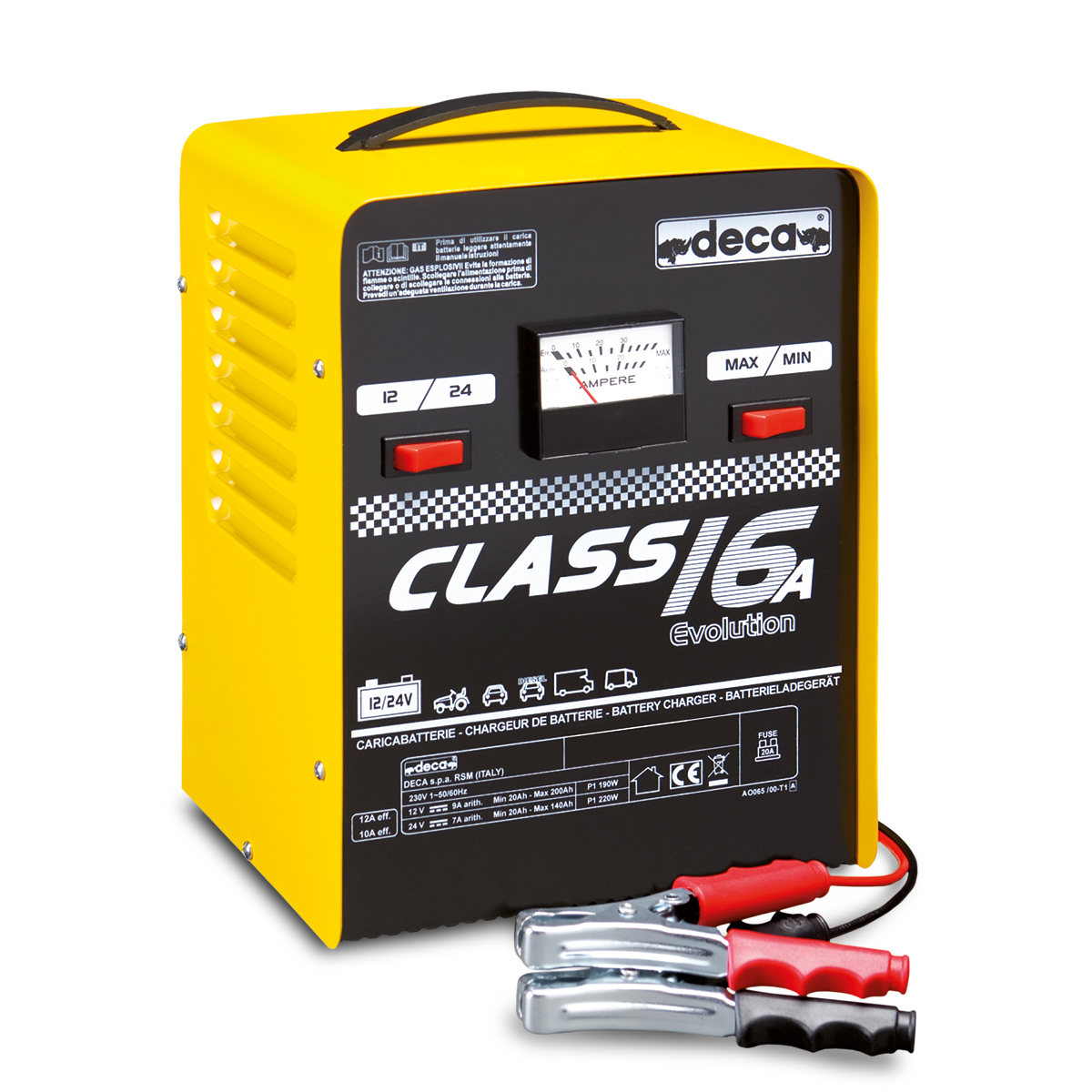

CLASS 16A
Battery charger: 12/24V-12A.
Manual cut-off charge.
Code: 310000
Technical data
| DATA SHEET | TITOLO |
| Process | CHARGE |
| Technology | Traditional |
| Standard | |
| Mains voltage 50/60 Hz | 1 X 230V |
| Maximum power absorbed | 220W |
| Power while charging (P1) | |
| Power while starting (P1) | |
| Fuse | |
| Nominal battery voltage | 12 / 24V |
| Battery capacity, Min – Max | 20 – 200Ah |
| Automotive battery types | Pb WET, MF, (AGM) |
| Average charging current | 9A |
| Effective charging current | 12A |
| Number of charging settings | 2 |
| Charging programs | |
| STANDARD CHARGE | |
| CHARGE WITH EQUALIZATION | |
| BATTERY EQUALIZATION | |
| BATTERY DESULPHATION | |
| DEEP CYCLE BATTERY CHARGE | |
| LiFePo4 BATTERY CHARGE | |
| CUSTOM CHARGING PROGRAM | |
| Battery charging with timer | |
| Charging Voltage limit | |
| Battery charge / equalization voltage limit | |
| Equalization Voltage limit | |
| Desulphation Voltage limit | |
| Manual End of charge | |
| Automatic End of charge | |
| End-of-charge | |
| Floating Voltage limit | |
| Battery maintainer Voltage limit | |
| SAFE CHARGE: Overvoltage limit. DIN 40839 | |
| POWER SUPPLY FOR THE DIAGNOSTIC | |
| BATTERY CHANGE | |
| POWER SUPPLY FOR SHOW ROOM | |
| STABILIZED POWER SUPPLY | |
| POWER SUPPLY | |
| Boosting current, 1 Volt EL | |
| Boosting current, 0 Volt / CC | |
| Starting cycles | |
| SAFE CHARGE / BOOST: Overvoltage limit. DIN 40839 | |
| Insulation class | |
| Simbolo casa (uso all’interno) | |
| Marchio EAC (Russia) | |
| Marchio UKR (Ucraina) | |
| Double isolation symbol | |
| Fuse (secondary) | 20A |
Features
| CHARACTERISTICS | TITOLO |
| Remote control | |
| Portable | |
| With wheels | |
| Analog ammeter | |
| Digital ammeter | |
| Digital Voltmeter, Ampmeter | |
| Display LCD | |
| Battery charge status LED | |
| Polarity inversion LED | |
| Voltage compensation according to temperature sensor | |
| Output connections | |
| Serial port COM 1 for printer | |
| SD card reader | |
| CANbus connection | |
| Reverse polarity / short circuit protection | |
| Thermostatic protection | |
| Protection class | |
| Copper transformer | |
| Cable organizer | |
| Cable organizer | |
| Cables length | 1,4m |
| High efficiency | |
| Wall mounting | |
| Fixing strap | |
| Weight and Dimention | PARAGRAFO |
| Weight approx kg | 4,16 |
| Dimensions L x W x H mm | 190X200X270 |
| LOGISTIC DATA | TITOLO |
| Barcode | 8011399004106 |
| Package dimension: L x W x H mm | 235X220X295 |
| Package weight kg: | 4,56 |
| Pieces per pallet: | 75 |
Functions
| FUNCTIONS | TITOLO |
| Battery diagnostics during charge | |
| Detection of sulfated battery | |
| Battery test | |
| Test battery starting capacity | |
| Alternator test | |
| Automatic restart after power failure | |
| Last program memory on power-on | |
| Customizable menu | |
| Language selection | |
| Programs under password | |
| Freeze in showroom mode | |
| Cable length calibration | |
| Motorcycle batteries charge maintainer | |
| Car batteries charge maintainer | |
| Power supply | |
| Cars power supply in the showroom | |
| Battery support during diagnostic | |
| Battery change mode |
Accessories
-
![Fuse 20Amps (yellow) - 10pcs]()

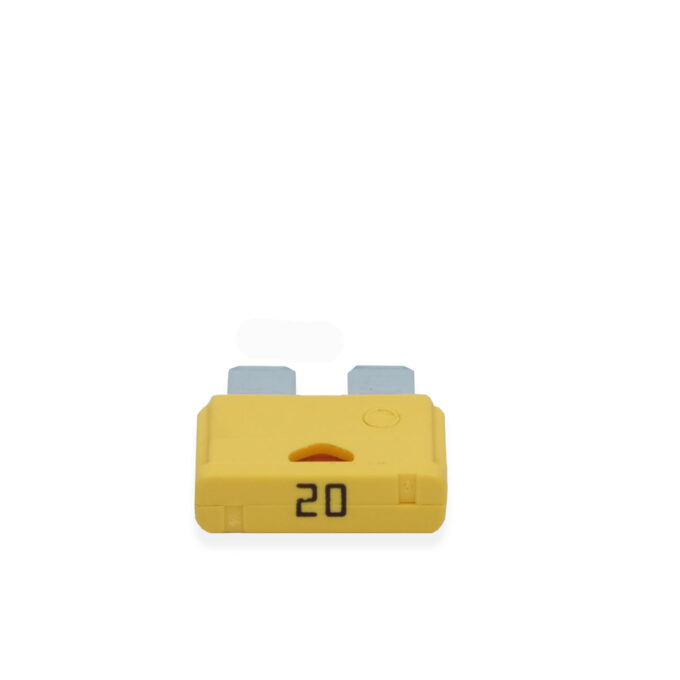

Fuse 20Amps (yellow) – 10pcs
Code: 010300
